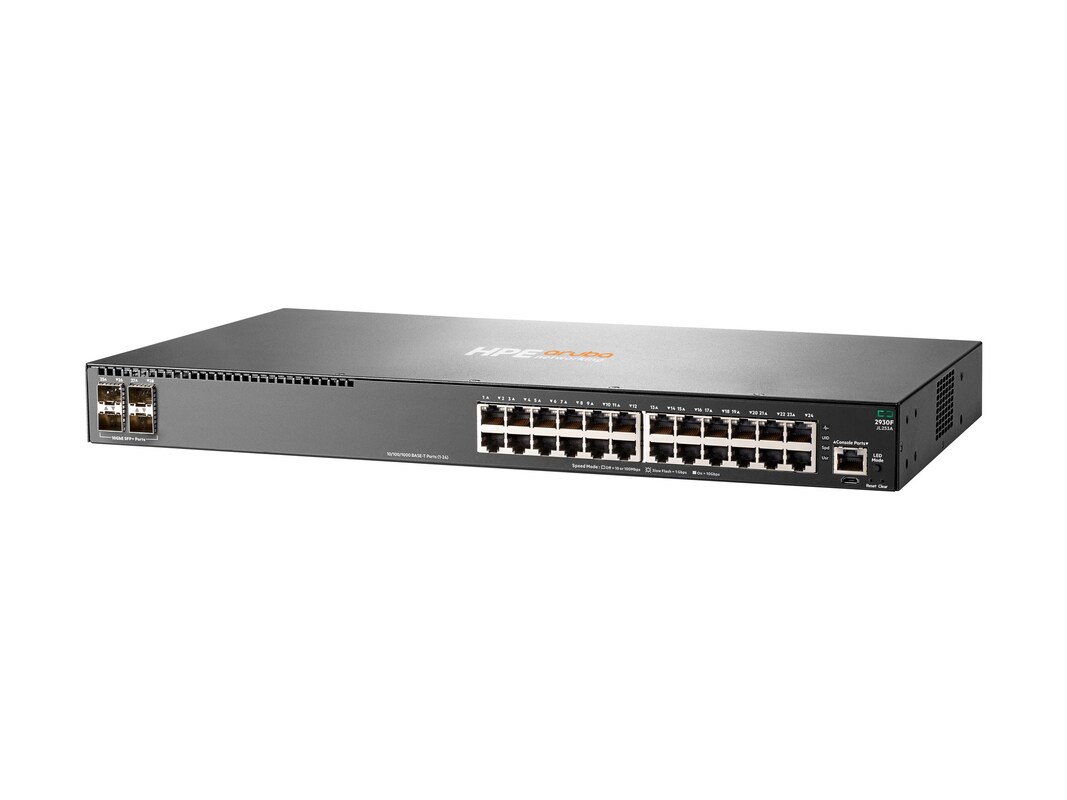

The Aruba 2930F Switch series is designed for customer creating digital workplaces that are optimized for mobile users with an integrated wired and wireless approach. These basic Layer 3 access switches are easy to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager and Aruba AirWave and are ideal for enterprise edge, SMB and branch offices.
-
5.30 lbs
-
# Ports: 24# Ports: 4
-
Switch, power cord, screw kit, (4) mounting ears, (4) bumper feet, (1) cable tie, documentation
-
Chassis Form Factor: 1U RackmountColor: BlackForm Factor: Rack-mountableWarranty Period: Limited lifetimeWeight Taxonomy: 5.31lbs
-
Features:
Flow control
Full duplex capability
DHCP support
BOOTP support
ARP support
VLAN support
IGMP snooping
Syslog support
DiffServ support
IPv6 support
SNTP support
sFlow
Spanning Tree Protocol (STP) support
Multiple Spanning Tree Protocol (MSTP) support
Access Control List (ACL) support
Quality of Service (QoS)
Jumbo Frames support
DHCP server
STP Root Guard
Uni-Directional Link Detection (UDLD)
LLDP support
Link Aggregation Control Protocol (LACP)
Management Information Base (MIB)
MAC address lockout
Dynamic ARP protection
DHCP protection
Dynamic VLAN Support (GVRP)
Multiple VLAN Registration Protocol (MVRP)
Neighbor Discovery Protocol (NDP)
Class of Service (CoS)
Type of Service (ToS)
OpenFlow support
CPU protection
Internet Control Message Protocol (ICMP)
ICMP Router Discovery Protocol (IRDP)
Virtual Extensible LAN (VXLAN)
Management Information Base (MIB) II
Performance & capacity:
Throughput: 41.7 Mpps
Switching capacity: 56 Gbps
Latency (1 Gbps): 3.8 µs
Jumbo frame size: 9220
IPv4 routing table entries: 10000
IPv6 routing table entries: 5000
Environmental properties:
Operating temperature: 32 to 113 F
Storage temperature: -40 to 158 F
Operating humidity: 15 to 95%, non-condensing
Storage humidity: 15 to 90%, non-condensing -
RAM (installed): 1GBRAM (installed): 4GBRAM Technology: DDR3 SDRAMRAM Technology: FlashRAM Technology: SDRAM
-
Processor: Dual-core ARM Coretex A9 1.016GHz
1GB DRR3 SDRAM
4GB Flash memory
12.38MB Packet Buffer Size
4.5MB Ingress
7.875MB Egress -
Networking Type: Switch
-
Software included:
Command Line Interface (CLI)
HP Web browser
HP Intelligent Management Center -
1.7"h x 17.4"w x 7.9"d
-
I/O:
(24) 1000Base-T RJ-45
(4) GbE LAN SFP
(1) Serial console
(1) Power in -
# Power Supplies Installed: 1
-
(1) Internal power supply
Voltage required: 120V
Operational power consumption: 29.3W -
# Processors Installed: 1Processor Manufacturer: ARMProcessor Model Number: A9Processor Speed: 1.016GHzProcessor Type: CortexProcessor Type: Cortex-A9
-
Networking Protocol: 10 Gigabit EthernetNetworking Protocol: ACLNetworking Protocol: ARPNetworking Protocol: BOOTPNetworking Protocol: CoSNetworking Protocol: DHCPNetworking Protocol: EthernetNetworking Protocol: Fast EthernetNetworking Protocol: FTPNetworking Protocol: Gigabit EthernetNetworking Protocol: IEEE 802.1ab (LLDP)Networking Protocol: IEEE 802.1adNetworking Protocol: IEEE 802.1AXNetworking Protocol: IEEE 802.1DNetworking Protocol: IEEE 802.1pNetworking Protocol: IEEE 802.1QNetworking Protocol: IEEE 802.1sNetworking Protocol: IEEE 802.1S (MSTP)Networking Protocol: IEEE 802.1vNetworking Protocol: IEEE 802.1WNetworking Protocol: IEEE 802.1xNetworking Protocol: IEEE 802.3ad (LACP)Networking Protocol: IEEE 802.3afNetworking Protocol: IEEE 802.3atNetworking Protocol: IEEE 802.3azNetworking Protocol: IEEE 802.3xNetworking Protocol: IPv6Networking Protocol: QOSNetworking Protocol: RADIUSNetworking Protocol: RIPNetworking Protocol: RS-232Networking Protocol: SNTPNetworking Protocol: TACACS+Networking Protocol: USBRemote Management Protocol: CLIRemote Management Protocol: RMON 1Remote Management Protocol: SNMPRemote Management Protocol: SNMP 1Remote Management Protocol: SNMP 2Remote Management Protocol: SNMP 2cRemote Management Protocol: SNMP 3Remote Management Protocol: SSHRemote Management Protocol: SSH-2Remote Management Protocol: SYSLOGRemote Management Protocol: TelnetRemote Management Protocol: XRMONRouting Protocol: BGPRouting Protocol: CIDRRouting Protocol: IGMPRouting Protocol: IGMPv2Routing Protocol: IGMPv3Routing Protocol: MLDRouting Protocol: OSPFRouting Protocol: OSPFv2Routing Protocol: OSPFv3Routing Protocol: RIPRouting Protocol: RIP-1Routing Protocol: RIP-2Routing Protocol: RIPngRouting Protocol: Static IP routingRouting Protocol: Static IPv4 routingRouting Protocol: Static IPv6 routing
-
This product is subject to our return policy. Please see our complete return policy for details.
-
8.66 lbs
-
Compliant Standards: CISPR 22 Class ACompliant Standards: CISPR 24Compliant Standards: CNS 13438Compliant Standards: CSA C22.2 No. 60950-1-07 Second EditionCompliant Standards: EN 55022:2010Compliant Standards: EN 55024:2010Compliant Standards: EN 60825-1:2007Compliant Standards: EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013Compliant Standards: FCC CFR47 Part 15 ACompliant Standards: ICES-003 Class ACompliant Standards: IEC 60825-1:2007Compliant Standards: IEC 60950-1:2005 + A1:2009 + A2:2013Compliant Standards: IEC 61000-3-2Compliant Standards: IEC 61000-3-3Compliant Standards: IEC 61000-4-11Compliant Standards: IEC 61000-4-2Compliant Standards: IEC 61000-4-3Compliant Standards: IEC 61000-4-4Compliant Standards: IEC 61000-4-5Compliant Standards: IEC 61000-4-6Compliant Standards: IEC 61000-4-8Compliant Standards: UL 60950-1 Second EditionCompliant Standards: VCCI Class A
-
43222612
-
Limited Lifetime
-
