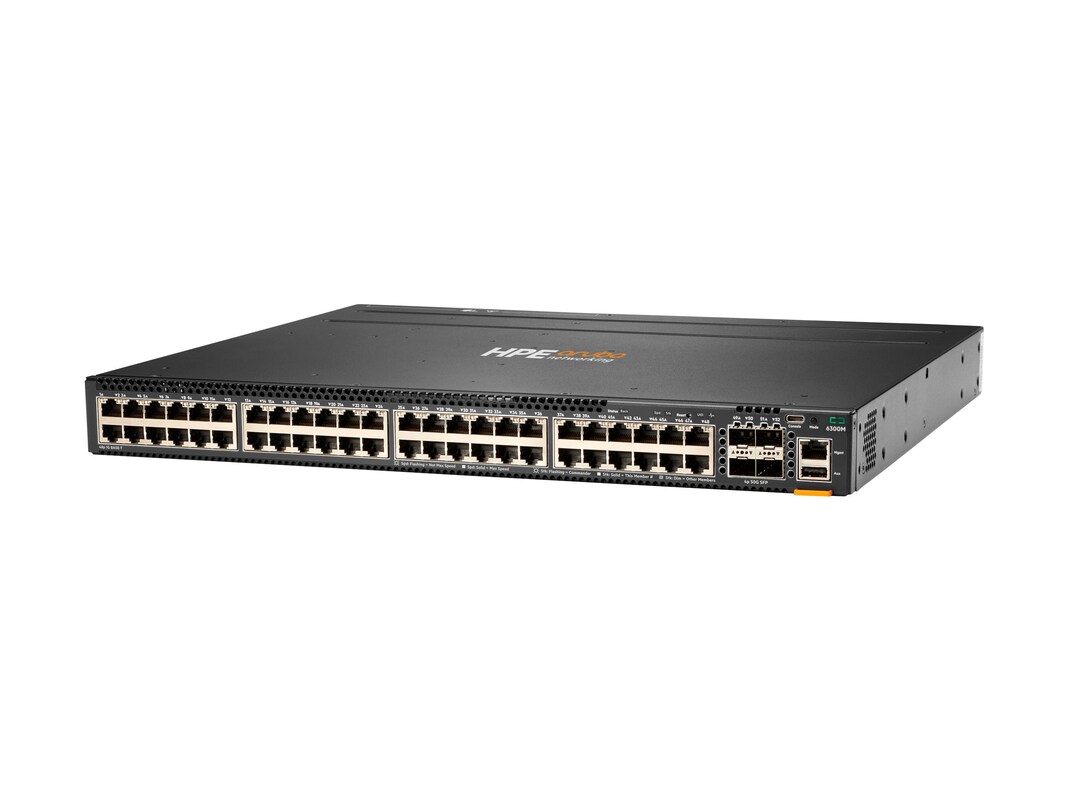

The Aruba CX 6300 Switch Series is a modern, flexible, and intelligent family of AOS-CX stackable switches ideal for enterprise access and aggregation. With a cloud-centric design that combines a fully programmable OS with the Aruba Network Analytics Engine, the Aruba CX 6300 extends industry-leading monitoring and troubleshooting capabilities to the access layer. Support of Aruba NetEdit and the Aruba CX Mobile App verify that configurations are flawless and easy to deploy.
-
12.20 lbs
-
Switch, rack mounting kit, documentation
-
Chassis Form Factor: 1U RackmountColor: BlackForm Factor: Rack-mountableWarranty Period: Limited lifetimeWeight Taxonomy: 12.15lbs
-
Switching capacity: 496 Gbps
Throughput: 369 Mpps
Latency (1 Gbps): 2.28 µs
Latency (10 Gbps): 1.46 µs
Latency (25 Gbps): 1.9 µs
Latency (50 Gbps): 3.49 µs
Stacking bandwidth: 200 Gbps
Switched virtual interfaces (SVIs): 1000
IPv4 host table capacity: 32000
IPv6 host table capacity: 32000
IPv4 routes (Unicast): 64000
IPv6 routes (Unicast): 32000
IPv4 routes (Multicast): 8000
IPv6 routes (Multicast): 8000
IGMP groups: 8000
RAM (installed): 8GBRAM Technology: DDR4 SDRAM1.78GHz ARM Cortex-A72 CPU
8GB DDR4 SDRAM
32GB Flash memory
Networking Type: Switch1.7"h x 17.4"w x 15.2"dI/O:
(48) 10/100/1000Base-T RJ-45 PoE+
(4) 1/10/25/50GbE SFP56(1) USB-C console
(1) Management
(1) USB Type-A# Processors Installed: 1Processor Manufacturer: ARMProcessor Speed: 1.78GHzProcessor Type: Cortex-A72Networking Protocol: 10 Gigabit EthernetNetworking Protocol: 25 Gigabit EthernetNetworking Protocol: 50 Gigabit EthernetNetworking Protocol: Gigabit EthernetNetworking Protocol: IEEE 802.1ab (LLDP)Networking Protocol: IEEE 802.1akNetworking Protocol: IEEE 802.1AXNetworking Protocol: IEEE 802.1DNetworking Protocol: IEEE 802.1pNetworking Protocol: IEEE 802.1QNetworking Protocol: IEEE 802.1sNetworking Protocol: IEEE 802.1tNetworking Protocol: IEEE 802.1vNetworking Protocol: IEEE 802.1WNetworking Protocol: IEEE 802.1xNetworking Protocol: IEEE 802.3ad (LACP)Networking Protocol: IEEE 802.3aeNetworking Protocol: IEEE 802.3afNetworking Protocol: IEEE 802.3atNetworking Protocol: IEEE 802.3btNetworking Protocol: PoE+Remote Management Protocol: CLIRemote Management Protocol: HTTPSRemote Management Protocol: RMONRemote Management Protocol: SFTPRemote Management Protocol: SNMP 2cRemote Management Protocol: SNMP 3Remote Management Protocol: SSHRemote Management Protocol: TelnetRemote Management Protocol: TFTPRemote Management Protocol: XRMONRouting Protocol: BGP-4Routing Protocol: Bidirectional Forwarding Detection (BFD)Routing Protocol: ECMPRouting Protocol: EGPRouting Protocol: IGMPRouting Protocol: IGMPv2Routing Protocol: IGMPv3Routing Protocol: MLDRouting Protocol: MSDPRouting Protocol: OSPFv2Routing Protocol: OSPFv3Routing Protocol: Static IPv6 routingRouting Protocol: VRRPThis product is subject to our return policy. Please see our complete return policy for details.17 lbsCompliant Standards: CAN/CSA C22.2 No. 60950-1-07Compliant Standards: CISPR 22 Class ACompliant Standards: CISPR 24:2010Compliant Standards: CISPR 32 Class ACompliant Standards: CISPR 35Compliant Standards: EN 50581:2012Compliant Standards: EN 55022:2010Compliant Standards: EN 55024:2010 Class ACompliant Standards: EN 55032:2012 Class ACompliant Standards: EN 55035:2017Compliant Standards: EN 60825-1:2007Compliant Standards: EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013Compliant Standards: EN 61000-3-2Compliant Standards: EN 61000-3-2:2014Compliant Standards: EN 61000-3-3Compliant Standards: EN 61000-3-3:2013Compliant Standards: FCC Class A certifiedCompliant Standards: FCC Part 15Compliant Standards: ICES-003 Class ACompliant Standards: IEC 60825-1:2007 Class 1Compliant Standards: IEC 60950-1:2005Compliant Standards: IEC 61000-3-2Compliant Standards: IEC 61000-3-3Compliant Standards: IEC 61000-4-11Compliant Standards: IEC 61000-4-2Compliant Standards: IEC 61000-4-3Compliant Standards: IEC 61000-4-4Compliant Standards: IEC 61000-4-5Compliant Standards: IEC 61000-4-6Compliant Standards: IEC 61000-4-8Compliant Standards: RoHSCompliant Standards: UL/CSA60950-1 (2nd Edition)Compliant Standards: VCCI Class ACompliant Standards: WEEEHard Drive Capacity: 32GBHard Drive Type: Flash43222612Limited LifetimeLimited LifetimeDescription Availability Unit Price View All Warranties 14
