NOTE: Images may not be exact; please check specifications.
-
In Stock
- Ships in 1-2 Business Days

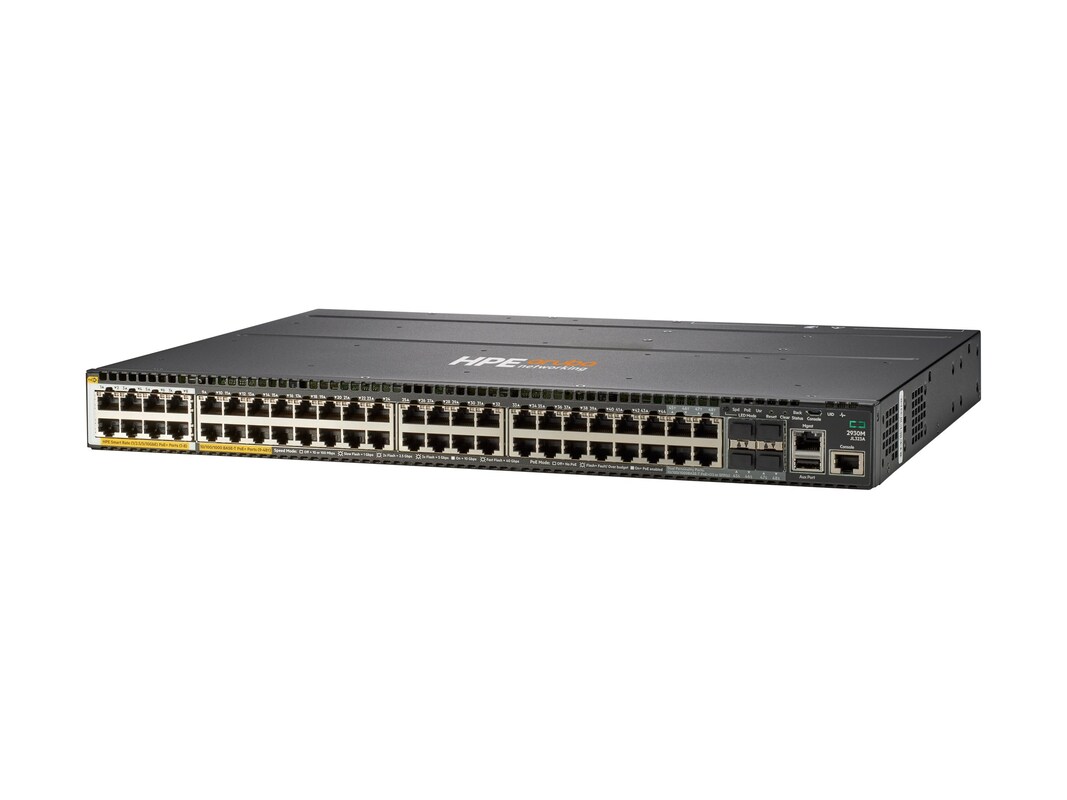

The Aruba 2930M Switch Series is designed for customers creating digital workplaces that are optimized for mobile users with an integrated wired and wireless approach. These Layer 3 access switches are easy to deploy and manage with advanced security and network management tools like Aruba
ClearPass Policy Manager and Aruba AirWave. With support from cloud-based Aruba Central, you can quickly set up remote offices with little or no IT support.
ClearPass Policy Manager and Aruba AirWave. With support from cloud-based Aruba Central, you can quickly set up remote offices with little or no IT support.
-
9.80 lbs
-
# Ports: 36# Ports: 4# Ports: 8
-
Switch, documentation
-
Chassis Form Factor: 1U RackmountColor: BlackForm Factor: Rack-mountableWarranty Period: Limited lifetimeWeight Taxonomy: 9.81lbs
-
10 Mbps Latency: < 98.5µs (FIFO 64 byte packets)
100 Mbps Latency: < 11.8µs (FIFO 64-byte packets)
1000 Mbps Latency < 3.1µs (FIFO 64-byte packets)
2.5 Gbps Latency: < 6.5µs (FIFO 64-byte packets)
5 Gbps Latency: < 4.2µs (FIFO 64-byte packets)
10 Gbps Latency: < 3.4µs (FIFO 64-byte packets)
Throughput: 112 Mpps
Stacking Performance: 100 Gbps
Switching Capacity: 320 Gbps
Switching Capacity (Including Stacking): 420 Gbps
Routing Table Size: 2,000 IPv4, 1,000 IPv6 in hardware, 200 OSPF, 256 Static, 10,000 RIP
Mac Address Table Size: 32768 entries
Primary Airflow: Direction Port to Power -
RAM (installed): 1GBRAM (installed): 4GBRAM Technology: DDR3 SDRAMRAM Technology: Flash
-
Processor: Dual Core ARM Cortex A9 @ 1016 MHz
1GB DDR3 SDRAM
4GB eMMC Flash
Packet Buffer Size: 12.38MB and 4.5MB Ingress/7.875MB Egress -
Networking Type: Switch
-
1.7"h x 17.4"w x 12.8"d
-
I/O:
(36) GbE PoE+ autosensing
(4) GbE Base-T PoE+/SFP combo
(8) 1/2.5/5 and 10GbaseT Copper PoE+
(1) RJ45/USB micro-B dual personality serial console
(1) USB Type B
(1) FE (100Base-T) out of band management
(1) uplink slot
(1) stacking module slot
(2) power supply slots (power supplies sold separately) -
# Power Supplies Installed: 0# Power Supplies Supported: 2
-
Idle Power: 75W
PoE Power (Max Possible): 1440W -
# Processors Installed: 1Number of Cores: Dual-CoreProcessor Manufacturer: ARMProcessor Model Number: A9Processor Speed: 1.016GHzProcessor Type: CortexProcessor Type: Cortex-A9
-
Networking Protocol: 10 Gigabit EthernetNetworking Protocol: 2.5 Gigabit EthernetNetworking Protocol: 5 Gigabit EthernetNetworking Protocol: Gigabit EthernetNetworking Protocol: IEEE 802.1ab (LLDP)Networking Protocol: IEEE 802.1adNetworking Protocol: IEEE 802.1AXNetworking Protocol: IEEE 802.1DNetworking Protocol: IEEE 802.1pNetworking Protocol: IEEE 802.1QNetworking Protocol: IEEE 802.1sNetworking Protocol: IEEE 802.1vNetworking Protocol: IEEE 802.1WNetworking Protocol: IEEE 802.1xNetworking Protocol: IEEE 802.3Networking Protocol: IEEE 802.3abNetworking Protocol: IEEE 802.3ad (LACP)Networking Protocol: IEEE 802.3afNetworking Protocol: IEEE 802.3atNetworking Protocol: IEEE 802.3azNetworking Protocol: IEEE 802.3bzNetworking Protocol: IEEE 802.3uNetworking Protocol: IEEE 802.3xNetworking Protocol: PoE+Remote Management Protocol: CLIRemote Management Protocol: FTPRemote Management Protocol: HTTPRemote Management Protocol: RMON 1Remote Management Protocol: SNMPRemote Management Protocol: SNMP 1Remote Management Protocol: SNMP 2Remote Management Protocol: SNMP 2cRemote Management Protocol: SNMP 3Remote Management Protocol: SSHRemote Management Protocol: SSH-2Remote Management Protocol: TelnetRemote Management Protocol: XRMONRouting Protocol: CIDRRouting Protocol: ECMPRouting Protocol: IGMPRouting Protocol: IGMPv2Routing Protocol: IGMPv3Routing Protocol: MLDRouting Protocol: OSPFRouting Protocol: OSPFv2Routing Protocol: OSPFv3Routing Protocol: RIPRouting Protocol: RIP-1Routing Protocol: RIP-2Routing Protocol: RIPngRouting Protocol: Static IP routingRouting Protocol: Static IPv4 routingRouting Protocol: Static IPv6 routing
-
This product is subject to our return policy. Please see our complete return policy for details.
-
16 lbs
-
Compliant Standards: CISPR 22 Class ACompliant Standards: CISPR 24Compliant Standards: CNS 13438Compliant Standards: CSA C22.2 No. 60950-1-07 Second EditionCompliant Standards: EN 55022:2010Compliant Standards: EN 55024:2010Compliant Standards: EN 60825-1:2007Compliant Standards: EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013Compliant Standards: EN 61000-3-2Compliant Standards: EN 61000-3-3Compliant Standards: FCC CFR47 Part 15 ACompliant Standards: ICES-003 Class ACompliant Standards: IEC 60825-1:2007Compliant Standards: IEC 60950-1:2005 + A1:2009 + A2:2013Compliant Standards: IEC 61000-3-2Compliant Standards: IEC 61000-3-3Compliant Standards: IEC 61000-4-11Compliant Standards: IEC 61000-4-2Compliant Standards: IEC 61000-4-3Compliant Standards: IEC 61000-4-4Compliant Standards: IEC 61000-4-5Compliant Standards: IEC 61000-4-6Compliant Standards: IEC 61000-4-8Compliant Standards: UL 60950-1 Second EditionCompliant Standards: VCCI Class A
-
43222612
-
Limited Lifetime
-
Limited Lifetime
