Limited Quantity Available
- Call for next available delivery

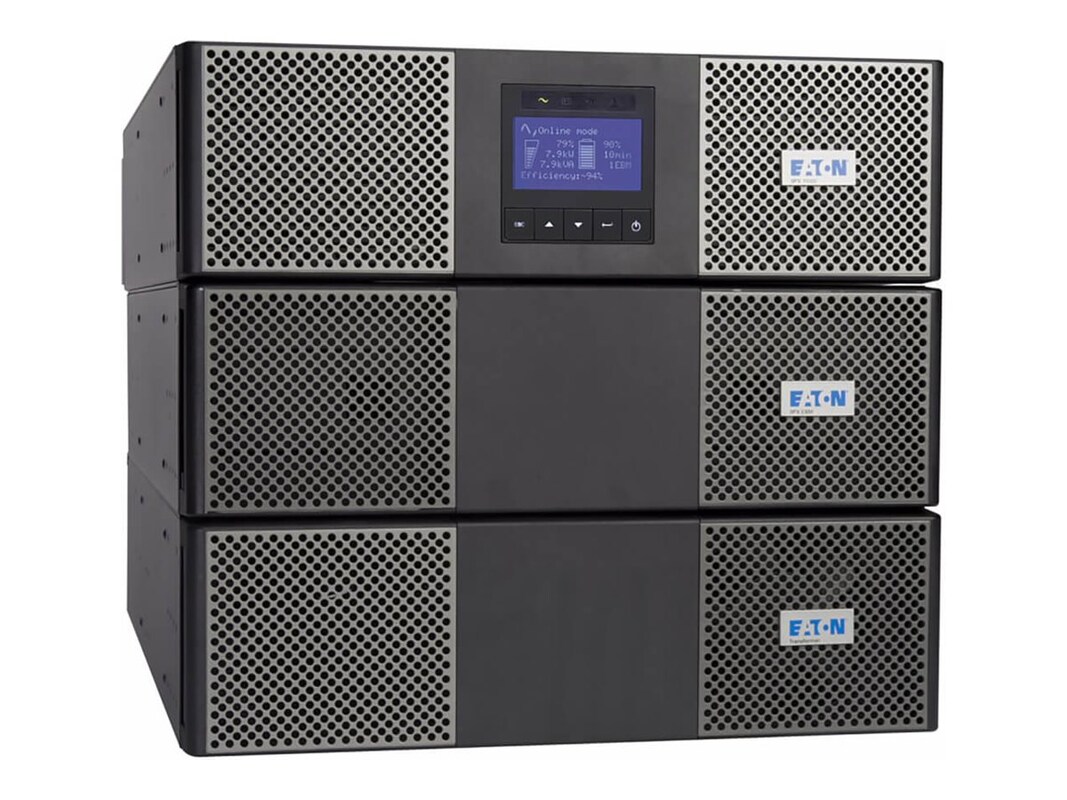

Delivering premium backup power and scalable battery runtimes for servers, voice/data networks and storage systems, the Eaton 9PX UPS is the ideal solution for both rack and stand-alone installations. With a graphical LCD interface and robust power management software, managing a UPS has never been easier. With extended battery runtime options, hot-swappable batteries, internal bypass and optional maintenance bypass, the 9PX maximizes the availability of your IT systems.
The 9PX allows you to connect more devices by providing up to 28 percent more wattage compared to traditional UPSs. The double-conversion online 9PX is the most efficient UPS in its class with a 93 percent or greater efficiency rating in normal mode. Eaton offers ABM technology that increases battery service life by 50 percent. ABM uses an advanced, three-stage charging technique and closely monitors battery health to provide advanced notice when batteries need replacement.
Eaton's next-generation intuitive LCD interface offers a graphical interface that provides all critical UPS information in a single view. The user-friendly menu allows you to view information and control settings with the push of a button.
This configuration includes: 11kVA Power Module, 11kVA EBM, 11kVA MBP, 5kVA Transformer.
The 9PX allows you to connect more devices by providing up to 28 percent more wattage compared to traditional UPSs. The double-conversion online 9PX is the most efficient UPS in its class with a 93 percent or greater efficiency rating in normal mode. Eaton offers ABM technology that increases battery service life by 50 percent. ABM uses an advanced, three-stage charging technique and closely monitors battery health to provide advanced notice when batteries need replacement.
Eaton's next-generation intuitive LCD interface offers a graphical interface that provides all critical UPS information in a single view. The user-friendly menu allows you to view information and control settings with the push of a button.
This configuration includes: 11kVA Power Module, 11kVA EBM, 11kVA MBP, 5kVA Transformer.
-
300.00 lbs
-
Features
Enables you to customize UPS settings, view load and power consumption information through the graphical interactive LCD interface
Fully integrates with Intelligent Power Software Suite for continuous up time of servers and virtual machines.
Provides more real power (watts) to protect more equipment and leave room for expanding IT systems
Delivers added runtime with extended battery modules and extends battery service life by 50% with ABM technology
Cuts energy usage and costs with =93% efficiency rating in normal mode
Maximizes availability with extended battery runtime options, hot-swappable batteries, internal bypass and optional maintenance bypass
Communications
User Interface: Graphical display. UPS status in a single view.
LEDs: (4) status-indicating LEDs
Communication Ports: RS-232 (RJ45) ports; USB port as standard (HID). 6-foot RS-232 and USB cables included
Communications Card Slots: Network Card-MS included
Power Management Software: Eaton Intelligent Power Software Suite CD (included)
Environmental & Standards
RoHS Compliance: Yes
Surge Protection: IEEE ANSI C62.41 Cat B2
Audible Noise: < 45 dB at 1 meter
Safety markings: CE / cULus / NOM
EMC Markings: IEC 62040-2:2006 Cat C2 / CISPR22 Class A / FCC part 15 Class A -
# Ports: 21Communication Interface: EthernetCommunication Interface: Serial (RS-232)Communication Interface: USBConnector: HardwireConnector: HardwiredConnector: Power NEMA 5-20 (F)Connector: Power NEMA L6-30 (F)
-
UPS, EBM, MBP, 5kVA transformer, 4-post rail kit, Network-MS Web/SNMP card, tower pedestals, software, serial cable, USB cable, documentation
-
Attributes: Double conversion onlineColor: BlackColor: SilverForm Factor: 9U RackmountForm Factor: ExternalForm Factor: TowerWarranty Period: 2 yearsWeight Taxonomy: 299.83lbs
-
15.3" x 17.3"w x 30"d
-
Hardwired input/output, plus
(2) L6-30R, (18) 5-20R -
Battery Run Time (max): 16minBattery Run Time (max): 48minPower Capacity (VA): 8000VAPower Provided: 7.2kWPower Provided: 7200WSurge Suppression: StandardSurge Suppression: YesVoltage Provided: AC 120/208V
-
Electrical
Rating: 8,000VA/7,200W
Input Voltage Range: Full load 176-276V, Derating 100-276V
Inpur Nominal Voltage: 208V default (200/208/220/230/240/250V)
Frequency: 50/60Hz
Frequency Range: 60Hz, 50-70Hz; 50Hz, 40-60Hz
Input Power Factor: > 99
Input Current Distortion: < 5%
Output Nominal Voltage: 208V default (200/208/220/230/240/250V)
Output voltage regulation: +/- 1% steady-state
Voltage THD: < 2% for linear loads
Power Factor: 0.9+
Transfer Time: 0ms
Batteries and Runtime
Battery runtime, full load (w/ 1 EBM): 16 minutes (7,200W)
Battery runtime, half load (w/ 1 EBM): 36 minutes (3,600W)
Battery Description: Sealed, lead-acid; maintenance free
Optional Extended Battery Module: 9PXEBM240RT
Maximum number of optional extended battery modules (EBM): Add up to (5) extended battery modules (EBM) with UPS; add up to (12) EBMs with optional SC240RT supercharger module
Battery Management: ABM technology; 3-stage charging extends battery service life by 50% and provides advance warning for battery replacement
Battery Replacement: Hot-swappable extended battery modules (EBMs); no internal batteries in UPS module
Start On Battery: Cold-start enabled; first cold start is always forbidden -
Remote Management Protocol: CLIRemote Management Protocol: HTTPRemote Management Protocol: SNMP 1Remote Management Protocol: SNMP 3Remote Management Protocol: SSHRemote Management Protocol: TelnetRemote Management Protocol: TFTP
-
This product is subject to our return policy. Please see our complete return policy for details.
-
302 lbs
-
Compliant Standards: CBCompliant Standards: CSA 22.2Compliant Standards: EN 62040-1-1Compliant Standards: EN 62040-2Compliant Standards: FCC Class A certifiedCompliant Standards: IEC 62040-1-1Compliant Standards: IEC 62040-2Compliant Standards: IEC 62040-3Compliant Standards: TUVCompliant Standards: ULCompliant Standards: UL 1778
-
OS Required: Apple MacOS XOS Required: LinuxOS Required: Microsoft Windows 7OS Required: Microsoft Windows Server 2008OS Required: Microsoft Windows VistaOS Required: Microsoft Windows Vista / XP / 7OS Required: Microsoft Windows XP
-
39121011
-
2 Years
-
2 Years
