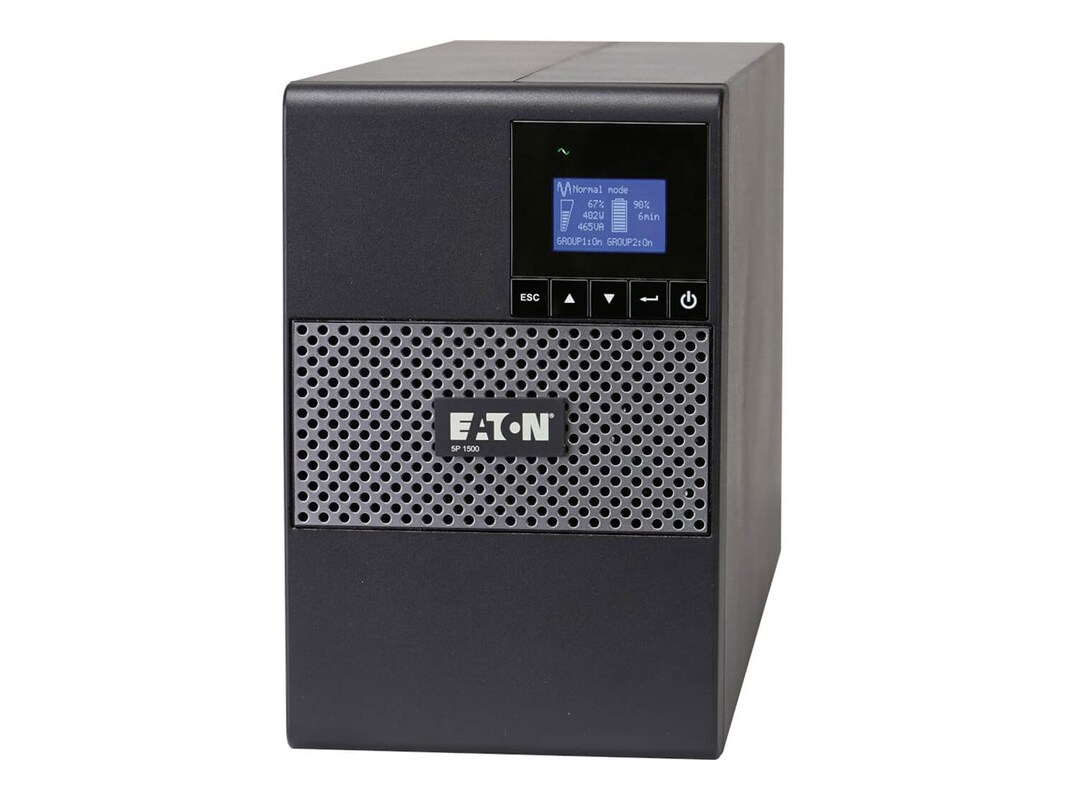

The Eaton 5P Tower UPS delivers reliable enterprise class backup power with an efficiency rating of up to 99%. The 5P's graphical LCD display allows you to view UPS status in a single glance and provides more available power than comparable UPSs. When paired with Intelligent Power Software Suite, the 5P allows you to seamlessly manage your connected equipment, even in virtualized environments.
Eaton provides product support 24 hours a day, 7 days a week. From battery replacement to full UPS service plans, Eaton has one of the top service models in the industry. The 5P warranty covers both the UPS and the batteries for three years.
Eaton provides product support 24 hours a day, 7 days a week. From battery replacement to full UPS service plans, Eaton has one of the top service models in the industry. The 5P warranty covers both the UPS and the batteries for three years.
-
35.60 lbs
-
Features
Enables you to customize UPS settings, view load and power consumption through the graphical interactive LCD screen interface
Fully integrates with Intelligent Power Software Suite for continuous up time of servers and virtual machines.
Provides more real power (watts) to protect more equipment and leave room for expanding IT systems
Extends battery service life by 50% with ABM Technology
Protects you with a three-year warranty, which includes the battery
Communications
User Interface: LCD graphical display
LEDs: Load protected, battery and fault
Communication Ports: (1) USB HID compliant port + (1) RS-232 serial port
Communications Card Slots: (1) slot for Network Card-MS (available separately)
Power Management Software: Eaton Intelligent Power Software Suite CD (included)
Performance - Safety - EMC: UL1778; UL497A
Safety markings: cULus, CE
EMC Markings: IEC 62040-2 C1-C2 / EN 55024 / CISPR22 Class B / FCC Part 15 subpart B Class A -
# Ports: 8Communication Interface: Serial (RS-232)Communication Interface: USBConnector: Power NEMA 5-15 (F)Connector: Power NEMA 5-15 (M)Connector: Power NEMA 5-15P
-
UPS, RS-232 cable, USB cable, software CD, documentation
-
Attributes: Line interactiveColor: BlackColor: SilverEnclosure Type: InternalForm Factor: ExternalForm Factor: TowerWarranty Period: 3 yearsWeight Taxonomy: 0.57oz
-
9.1"h x 5.9"w x 17.5"d
-
Input connection: NEMA 5-15P, 6ft cord
Output connections: (8) NEMA 5-15R
Two individually controlled groups of outlets
Remote Emergency Power off (REPO) ROO/RPO: Rear terminal block connector for remote on/off and power off -
Battery Run Time (max): 5minPower Capacity (VA): 1440VAPower Provided: 1100Power Provided: 1100WSurge Suppression: StandardVoltage Provided: 120VVoltage Provided: AC 120V
-
Rating: 1440VA/1100W
Input Voltage Range: 89–151Vac (adjustable to 70–153Vac)
Nominal Voltage: 120Vac (adjustable to 100/120/125Vac)
Frequency: 50/60Hz (auto-sensing)
Frequency Range: 47–70Hz (50Hz system), 56.5–70Hz (60Hz system), 40-70Hz in low-sensitivity mode
On Utility Voltage Regulation: 102–132Vac
On Battery Voltage Regulation: -10%, +6% of nominal
Output Frequency: 50/60Hz +/-0.1 % (autosensing)
Batteries and Runtime
Battery Management: ABM technology and temperature-compensated charging method (user selectable), automatic battery test, deep discharge protection, automatic recognition of extended battery modules (EBMs)
Battery Type: sealed, lead-acid; maintenance free
Battery Replacement: Hot-swappable internal batteries
Start On Battery: Allows start of UPS without utility power (First time start must be on AC power)
On Battery runtime, full load: 4 minutes (1100W)
On Battery runtime, half load: 13 minutes (550W) -
This product is subject to our return policy. Please see our complete return policy for details.
-
36.4 lbs
-
Compliant Standards: CISPR 22 Class BCompliant Standards: CULCompliant Standards: EN55024Compliant Standards: FCC Part 15 BCompliant Standards: FCC Part 15 B Class ACompliant Standards: IEC 62040-2Compliant Standards: RoHSCompliant Standards: ULCompliant Standards: UL 1778Compliant Standards: UL 497A
-
39121011
-
3 Years
-
3 Years
-
3 years on electronics, 3 years on batteries with registration
