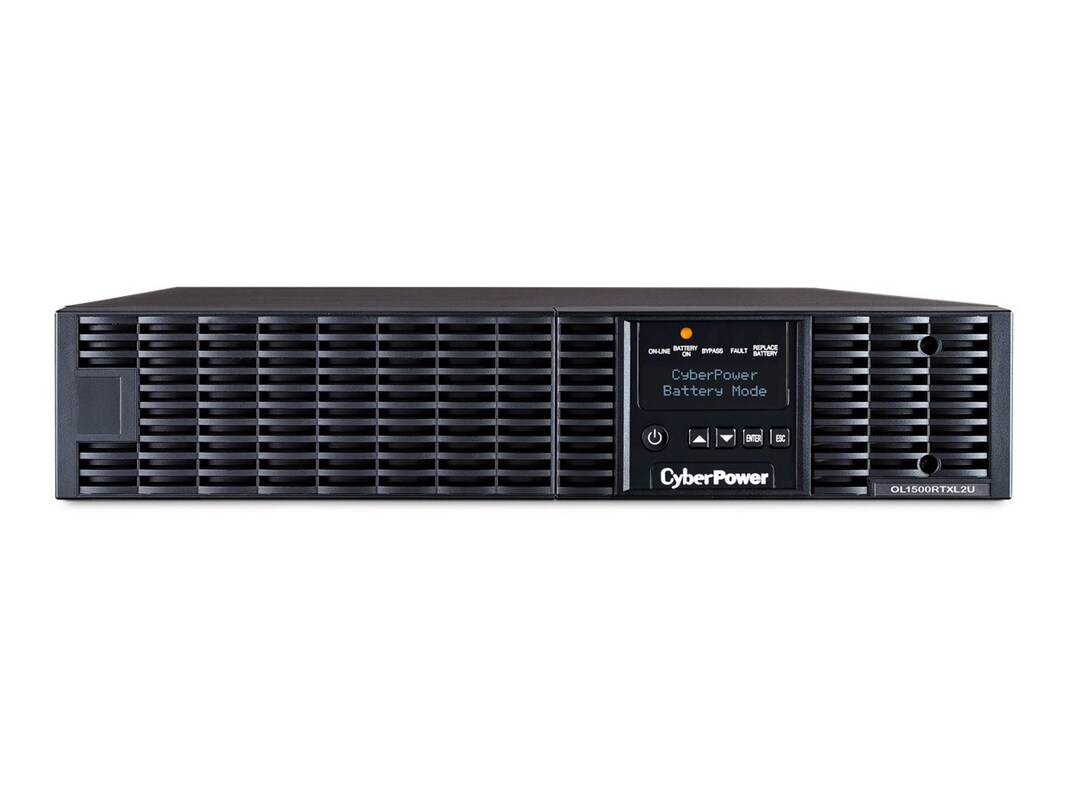

CyberPower Smart App Online 1500VA 1350W 100-125VAC 2U R T 5-15P 10ft Cord (8) 5-15R (OL1500RTXL2UN)

39.60 lbs

Features

Double-Conversion Topology - Provides consistent, clean and nearly perfect power, regardless of the condition of incoming power. Systems with this technology operate on isolated DC power 100% of the time and have a zero transfer time because they never need to switch to battery. Double-conversion UPS systems are designed for high-end system components, corporate servers, lab equipment and other sensitive electronic devices.
Sine Wave Output - Provides power protection to ENERGY STAR 6.0 and 80 PLUS systems with Active PFC power supplies.
RMCARD205 Factory Installed - A full-featured network management card, the CyberPower RMCARD205 remotely manages, monitors and controls CyberPower UPS systems via a standard web browser, command line interface (CLI) or network management system (NMS) connection.
Extendable LCD Panel - Displays UPS statuses and customizable operating settings from up to 10 ft. away (with optional cable). The extendable LCD control panel can be configured in English, Spanish or French for ease of use.
Extended Battery Module (EBM) - Extends runtime by adding EBMs. This UPS allows for up to ten added modules.
Fast Charge Technology - Allows UPS batteries to return to 100% capacity more rapidly by utilizing a built-in charger inside each EBM. Restores a complete charge within 5 hours regardless of the number of EBMs.
Smart Battery Management (SBM) - Improves and extends the functional life of a UPS battery and reduces excessive heat during work cycles by using a three-cycle charging process. Charger will also regulate charging voltage to compensate for ambient temperature. It will reduce the charging voltage at higher temperature and vice versa.
GreenPower UPS ECO Mode - Improves UPS efficiency up to 95% saves on electrical and cooling costs.
Hot-Swappable Batteries - Eliminate downtime related to UPS power maintenance for continuous power availability.
Critical & Non-Critical Loads - The UPS has two banks of outlets which can be configured so that the non-critical loads shut off after a set timeframe to provide additional runtime for the critical load outlet. Users can prioritize their equipment runtimes to maximize the output of the UPS to meet their power requirements.
Emergency Power Off (EPO) - Allows the UPS to be shut off in the event of an emergency, when the EPO port is connected to an EPO switch.
Generator Compatible - Provides stable sine wave output (free of harmonics and distortion) without switching to battery mode when running on generator input power.
Converter Mode - Provides the flexibility to set the output frequency, regardless of the input frequency, to match connected equipment by selecting 50Hz or 60Hz output on the LCD control panel.
USB & Serial Connectivity - Enables full integration with built-in power management and auto shutdown features on Windows, Linux and VMware systems through a HID-compliant USB port and Serial port.
EMI/RFI Filters - Prevent electromagnetic and radio frequency interference to ensure clean power for connected equipment.
Data Line Protection - Prevents power surges that travel through telephone and Ethernet lines from causing damage to electronics.
Audible Alarms - Identify when the model is running on battery power, overloaded or has a low battery.
Resettable Circuit Breaker - Interrupts an electric current in a circuit when the current becomes too high.
LED Status Lights - Indicate Power On, Line Mode, Battery Mode, Bypass Mode, Fault, Replace Battery.
Rack/Tower Versatility - Allows for horizontal rack or vertical tower installation.
PowerPanel Business Edition Software - Provides IT professionals with tools for monitoring and managing the UPS and backup power. This software offers remote management functionality. Free software download available.
Cisco Compatible - This CyberPower UPS system is a Cisco EnergyWise compliant end device.
ENERGY STAR - This model is an ENERGY STAR ce

UPS, rackmount rails, rackmount ears, hardware, rubber feet, phone line, UAB cable, serial cable, software CD, documentation

3.5"h x 17"w x 16.9"d

Outlet Type (Quantity): NEMA 5-15R (8)
Plug Type: NEMA 5-15P
Cord Length: 10ft

Input

Voltage: 120VAC
Input Voltage Range: 60 - 69VAC for 0-60% load, 70 - 79VAC for 0-70% load, 80 - 89VAC for 0-80% load, 90 - 95VAC for 0-90% load, 96 - 150VAC for 0-100% load
Frequency Range: 40 - 70Hz
Input Power Factor: 0.99
Cold Start: Yes

Output

Capacity: 1,500VA/1,350W
On Battery Voltage: 100, 110, 115, 120, 125 VAC (Configurable) +/-2%
On Battery Frequency: 50/60Hz +/- 0.25Hz (auto-sensing or configurable)
On Battery Waveform: Sine Wave
Rated Power Factor: 0.9
Crest Factor: 3:1
Harmonic Distortion: THD < 3% at Linear Load, < 5% at Non-linear Load
ECO Mode Voltage Regulation: +/-10%, +/-15% (Configurable)
Bypass: Internal Bypass (Automatic and Manual)
Overload Protection: Line Mode 105~125% Load for 1 min, 126~150% Load for 10 sec; Battery Mode 105~130% Load for 10 sec, 131~150% Load for 2 sec
Transfer Time: 0ms

Battery

Runtime at Half Load: 11 minutes
Runtime at Full Load: 3 minutes
Battery Type: Sealed Lead-Acid
Battery Size: 12V/9Ah
Battery Quantity: 3
Hot-Swappable: Yes
User Replaceable: Yes
Replacement Battery Cartridge: RB1290X3L
Replacement Battery Cartridge Quantity: 1
Typical Recharge Time: 4 hours
Extended Battery Option: BP36V60ART2U
Smart Battery Management (SBM) Mode: Yes

Surge Protection & Filtering

Surge Suppression: 1,335 J (IEC 61000-4-5 Level 3)
EMI/RFI Filter: Yes
Phone/Network Protection RJ11/RJ45: 1-In / 1-Out
