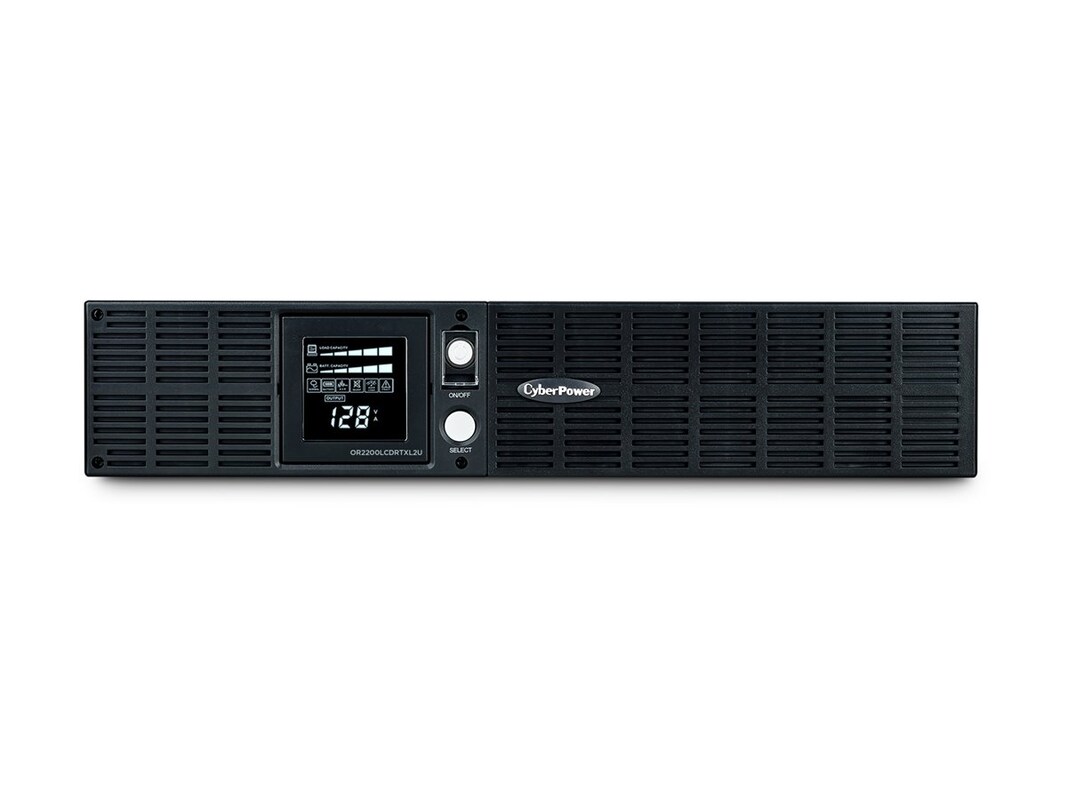

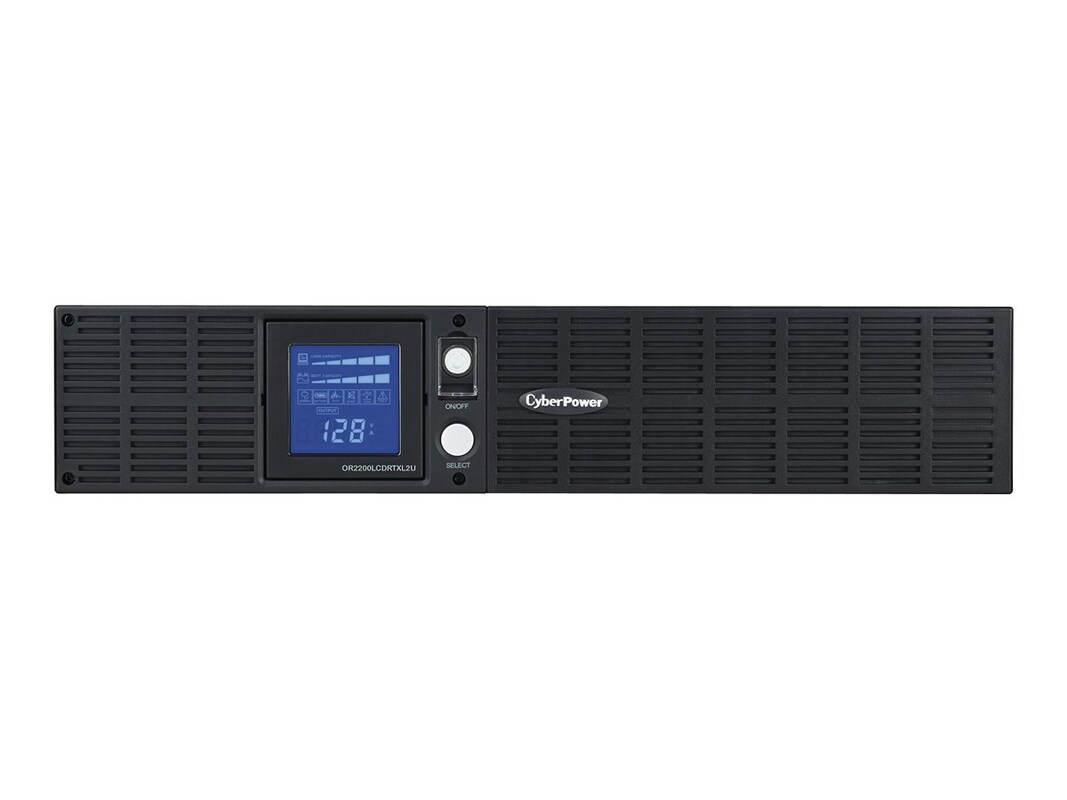

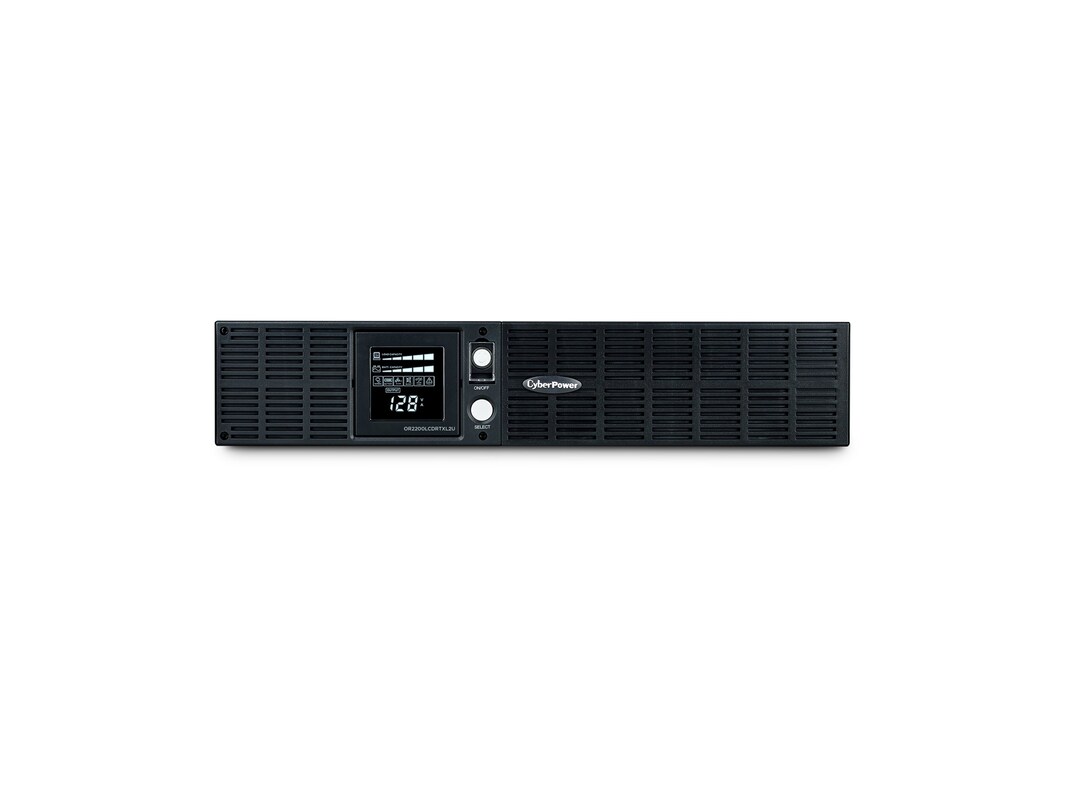

CyberPower Smart App Intelligent LCD 2190VA 1650W 120V 2U RM Tower UPS (or2200LCDRTXL2U)

66.10 lbs

Surge Suppression: 2,060 Joules
Multifunction LCD Diagnostic Display: Load/Current Level, Runtime, Battery Level, Temperature (F & C), Battery In Use, Input Voltage, Output Voltage, Output Frequency, Overload, Wiring Fault, Battery Shutdown Voltage, Static Frequency Tolerance, Slew Rate, Silent Mode, Normal Mode
LED Indicators: Power on, wiring fault
Audible Alarms: On battery, low battery, overload
Software: PowerPanel Business Edition
SNMP / HTTP Remote Monitoring: Yes, with optional RMCARD201

Features & Benefits

Microprocessor-Based Digital Control: Digital routing is maintained through a network of integrated circuitry and discrete values that are used for internal system processing, which significantly increases efficiency and responsiveness.
RM/T Configuration: The Smart App Sinewave UPS can be installed in either a Tower or Rack Mount (2U) configuration.
Full AVR: Boost/Buck topology increases low voltages and decreases high voltages, without switching to battery-mode. This conserves battery life and delivers power with a more stable and consistent voltage to connected equipment.
GreenPower UPS: GreenPower UPS technology significantly reduces UPS energy costs by bypassing the AVR transformer when incoming AC power is clean. This not only dramatically reduces utility consumption, but also reduces heat dissipation and system noise.
EMI/RFI Filters: Filters against electromagnetic interference and radio frequency interference ensuring clean power for connected equipment.
Dual PC Support: The Smart App Sinewave UPS has two (2) serial communication ports to connect two PCs or servers, giving the user full control and the ability to prioritize their operation.
Multi-function Rotatable LCD Display: UPS battery status and power conditions are easily viewed on this Crystal Blue readout when the UPS is rack mounted or standing as a tower.
Audible Alarms: Distinctive tones identify when the unit is running on battery power, if it is overloaded or when the battery is low.
Resettable Circuit Breaker: Convenient unit reset switch in case of an overload.
Metal Housing: Rugged, industrial-grade metal construction allows for installation of the unit in demanding environments.
PowerPanel Business Edition: This software suite manages the power for all servers and computers supported by the UPS on a network. Features include application/OS shutdown, event logging (power, surge, and voltage variations), hibernation mode, internal reports and analysis, as well as remote management capability for comprehensive power control.
3-Year Warranty: Stringent manufacturing processes and innovative product design enables CyberPower to offer one of the strongest warranties in our industry. CyberPower will repair or replace damaged units within three (3) years of purchase date.
#1 Rated Technical Support Team: CyberPower assists users with any product, installation, or warranty concerns, free of charge.
ISO and Safety Certifications: All CyberPower manufacturing facilities are state-of-the-art and ISO-9001 Quality Tested; certified by the FCC, cUL, and UL.
Windows Compatibility: PowerPanel power management software has been fully tested and is compatible with Windows 2000, 2003, XP 32/64, Vista 32/64, 7, and Server 2008.

UPS, (2) USB cables, serial cable, rack mount brackets, (2) tower stands, (2) phone cables, EPO cable, software, documentation

3.5"h x 17"w x 18.8"d

Please note: This unit plugs into and requires a NEMA 5-20R outlet.

Plug Type: NEMA 5-20P
Plug Style: Straight
Cord Length: 10 feet

Outlet Type: NEMA 5-20R
Outlets, Battery & Surge Protected: (8)

Phone/Ethernet: RJ-11/RJ-45 1-In, 1-Out (Combo)
Coax Protection: RG-6 1-In, 1-Out

HID Compliant USB Port: Yes
Serial (DB-9) Ports: Yes, (1 RS-232, 1 Dry contact)
Management Cables: USB cable, Serial cable (2)

UPS Topology: Line-Interactive (AVR)
Energy Saving: GreenPower UPS Bypass Technology

Input

Voltage: 90Vac - 140Vac
Frequency: 47Hz - 63Hz

Output

Power: 2190VA/1650W
Automatic Voltage Regulation: Yes
On Battery Voltage: 120Vac +/- 10%
On Battery Frequency: 60Hz +/- 1%
On Battery Waveform: Simulated sine wave
Overload Protection: Internal circuitry limiting / circuit breaker
Transfer Time: 4ms

Battery

Runtime at Half Load: 14 minutes (825W)
Runtime at Full Load: 6 minutes (1650W)
Battery Type: Sealed lead acid
Battery Size: 12V/9Ah
User Replaceable: Yes
Hot Swappable: Yes
Typical Recharge Time: 8 Hours
Replacement Battery: BB Battery - HR9-12
Battery Quantity: (4)

This product is subject to our return policy. Please see our complete return policy for details.

93.2 lbs

39121011

3 Years

3 Years

$300,000 Connected Equipment Guarantee.
