CyberPower Rackbar Surge Protector 120V 15A 1U RM 3600 Joules 5-15P Input 15-foot Cord (16) 5-15R Outlets
Add to Cart
Messages
Loading
-
:
Quick View
Getting Details

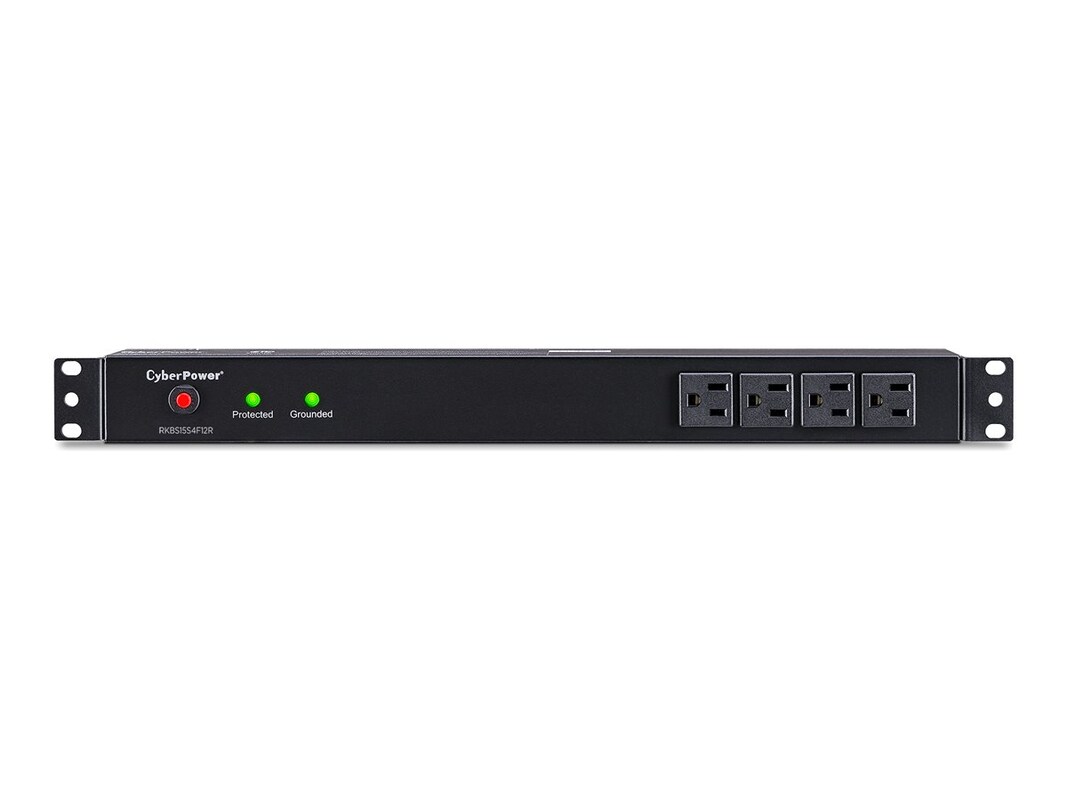

Engineered for the most demanding applications, the professional-grade Rackbar Surge Protector RKBS15S4F12R from CyberPower safeguards systems and networking equipment by absorbing spikes in energy caused by storms and electrical power surges. Designed for network environments, the RKBS15S4F12R also performs superbly for home office use, providing 3600 joules of protection, 15-Amp electrical capacity with circuit breaker, and 16 surge-protected outlets (4 front, 12 rear). Industrial-grade metal housing keeps this Rackbar performing flawlessly. Two sets of mounting brackets provide flexible installation options: 1U rackmount (19 in.); 0U vertical rackmount and under-counter configurations.
Features of the RKBS15S4F12R include an EMI/RFI noise filter, LED status indicators, industrial-grade metal housing, AC power cord (15 ft.), and a cord retention tray.
Features of the RKBS15S4F12R include an EMI/RFI noise filter, LED status indicators, industrial-grade metal housing, AC power cord (15 ft.), and a cord retention tray.
-
4.16 lbs
-
Rack Size: 1U
Style: Rackmount, Vertical Rackmount, Under-Counter
Form Factors Supported: 1U rackmount, 0U vertical rackmount, undercounter installation supported
Cord Retention Tray/Cord Organizers: Yes
Adjustable Mounting Brackets: (2) sets(L-short/L-long)
External Site Ground Pin: Yes
Material of Construction: Metal
Certifications: UL1363 UL1449 certified by ETL(USA), CSA C22.2(Canada), RoHS Compliant -
# Ports: 16Connector: Power NEMA 5-15Connector: Power NEMA 5-15 (F)Connector: Power NEMA 5-15 (M)
-
Unit, mounting brackets, documentation
-
Color: BlackForm Factor: Rack-mountableWarranty Period: Limited lifetimeWeight Taxonomy: 4.19lbs
-
1.75"h x 17.5"w x 2.25"d
-
Input
Plug Type: NEMA 5-15P
Plug Style: Straight
Cord Length: 15ft
Output
Outlets, Total: (16)
Outlets, Front: (4)
Outlets, Rear: (12)
Outlet Type: NEMA 5-15R -
Surge Protection Rating: 3600JoulesSurge Suppression: YesVoltage Provided: 120VVoltage Provided: AC 120V
-
Input
Voltage: 120V
Frequency: 50Hz/60Hz
Maximum Input Current: 15A
Output
Overload Protection: 15A
Nominal Output Voltage: 120V
LED Indicators: Power On(Green), Grounded (Green)
Surge Protection and Filtering
Surge Suppression: 3,600 Joules
Protection Modes: N-H, N-G, and H-G
Maximum Surge Current: 180,000 Amps
Maximum Surge Voltage: 6,000 Volts
Clamping Voltage N-H, N-G, H-G 400V
Response Time: (1) nanosecond
EMI/RFI Filtration: Yes
Attenuation: Up to 50dB -
This product is subject to our return policy. Please see our complete return policy for details.
-
5.88 lbs
-
Compliant Standards: CSA C22.2Compliant Standards: ETLCompliant Standards: RoHSCompliant Standards: UL 1363Compliant Standards: UL 1449
-
39121610
-
Lifetime
-
Lifetime
-
$150,000 Connected Equipment Guarantee
