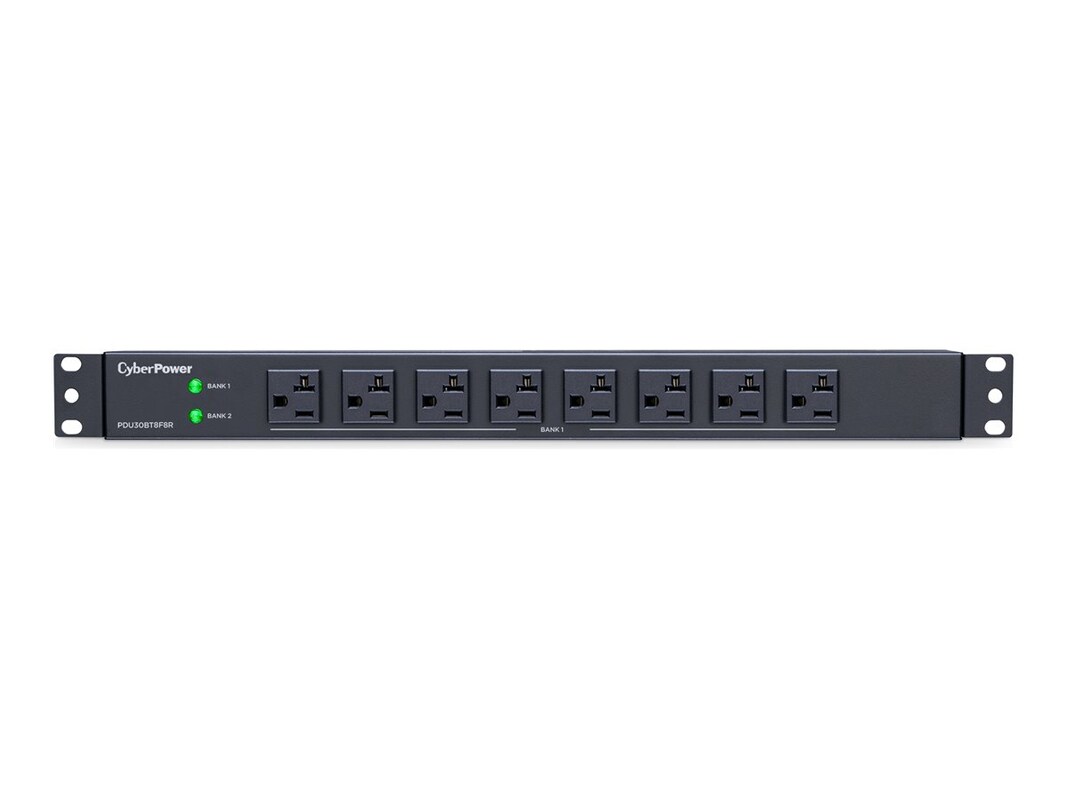

The CyberPower 16-outlet (8 Front/8 Rear) rack mount basic power distribution unit (PDU30BT8F8R) provides 120V, 30A output. It distributes power to (16) NEMA 5-20R receptacles from a single NEMA L5-30P twist lock plug, with unfiltered electrical pass-through. Designed for datacenters and other electrically demanding applications, this unit has a rugged, industrial-grade metal housing and a 12-foot AC power cord. It can be mounted either horizontally or vertically, includes a cord retention tray and is ETL/RoHS certified. A lifetime warranty ensures that this PDU is free of defects in design, assembly, material and workmanship.
-
6.00 lbs
-
Physical
Rack Size: 1U
Style: Rackmount, Vertical Rackmount, Under-Counter
Form Factors Supported: 1U rackmount, 0U vertical rackmount, undercounter installation supported
Cord Retention Tray/Cord Organizers: Yes
Adjustable Mounting Brackets: (2) sets (L-short/L-long)
External Site Ground Pin: Yes
Certifications
UL1363 certified by ETL (USA), CSA C22.2 (Canada)
RoHS Compliant -
# Ports: 16Connector: Power NEMA 5-20 (F)Connector: Power NEMA L5-30Connector: Power NEMA L5-30 (M)
-
PDU, adjustable mounting brackets (2 sets), documentation
-
Color: BlackForm Factor: 1U RackmountForm Factor: Rack-mountableWarranty Period: Limited lifetimeWeight Taxonomy: 5.95lbs
-
1.75"h x 17.5"w x 2.25"d
-
Plug Type: NEMA L5-30P
Plug Style: Straight
Cord Length: 12 feet
Outlets: Total (16), Front (8), Rear (8)
Outlet Type: NEMA 5-20R -
Voltage Provided: 120VVoltage Provided: AC 120V
-
Input
Voltage: 120VAC
Current: 30A max (derated to 24A)
Frequency: 50/60Hz
Output
Overload Protection: (2) 20A CB
Nominal Output Voltage: 120VAC -
This product is subject to our return policy. Please see our complete return policy for details.
-
7.71 lbs
-
Compliant Standards: CSA C22.2Compliant Standards: ETLCompliant Standards: RoHSCompliant Standards: UL 1363
-
39121017
-
Lifetime
-
