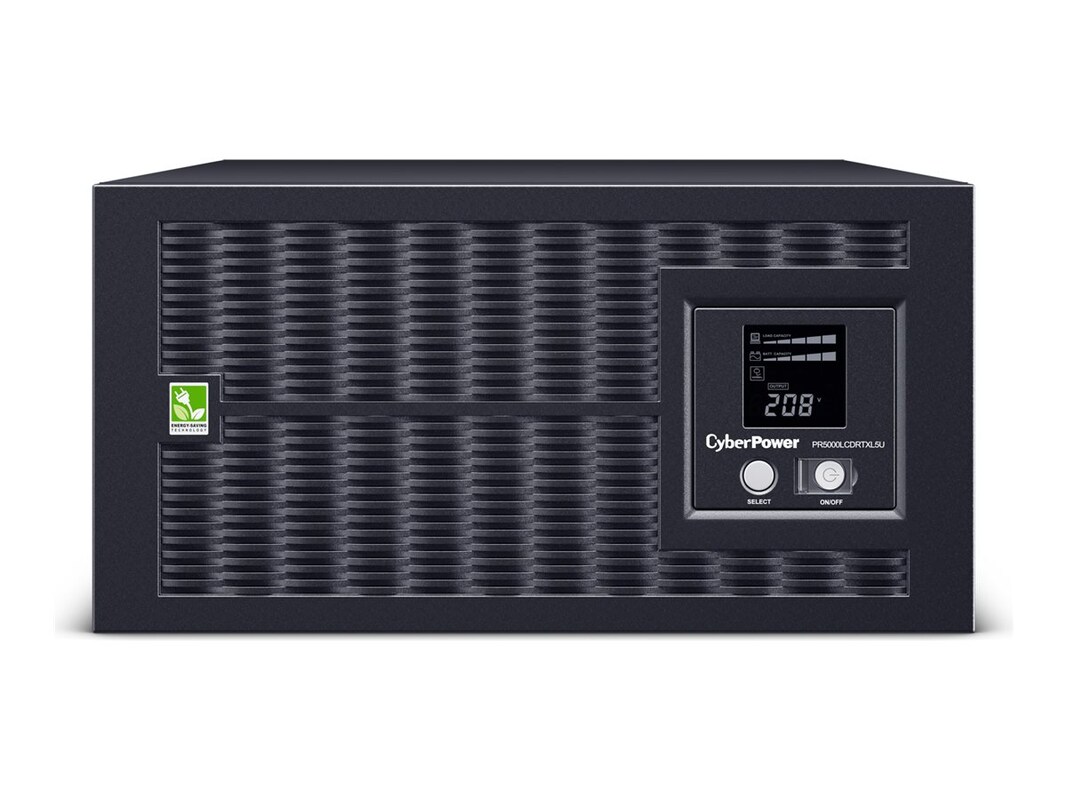

The CyberPower Smart App Sinewave PR5000LCDRTXL5U uninterruptible power supply (UPS) safeguards mission-critical servers, telecom equipment, VoIP and internetworking hardware that require seamless Pure Sinewave power. Its full automatic voltage regulation (AVR) boost/buck topology delivers a consistent and clean AC power, protecting connected equipment and preventing costly business interruptions. Patented GreenPower UPS advanced circuitry reduces UPS energy costs by up to 75% compared to competitive models.
The PR5000LCDRTXL5U unit has a capacity of 5000VA/4500Watts, five (5) battery and surge-protected receptacles, including three (3) NEMA L6-30R twist lock receptacles and two (2) fail-safe NEMA L6-20R twist lock receptacles for critical loads. This UPS has sixteen (16) maintenance-free, user-replaceable 12V/9Ah batteries. The rotatable front LCD panel displays all major UPS vitals for ease of use. This unit offers connectivity via one (1) HID USB, two (2) DB9 serial and one (1) emergency power off (EPO) port. Protection for phone/network (RJ11/RJ45) is included. EMI/RFI filters increase the immunity of the load to noise disturbances.
This UPS unit incorporates microprocessor-based fully digital control and includes PowerPanel Business Edition software for unsurpassed flexibility and control. The addition of an optional SNMP/Network card allows for remote management via web browser or network management system (NMS). A Three-Year Warranty ensures that this UPS has passed our highest quality standards in design, assembly, material or workmanship and further protection is offered by a $300,000 Connected Equipment Guarantee.
The PR5000LCDRTXL5U unit has a capacity of 5000VA/4500Watts, five (5) battery and surge-protected receptacles, including three (3) NEMA L6-30R twist lock receptacles and two (2) fail-safe NEMA L6-20R twist lock receptacles for critical loads. This UPS has sixteen (16) maintenance-free, user-replaceable 12V/9Ah batteries. The rotatable front LCD panel displays all major UPS vitals for ease of use. This unit offers connectivity via one (1) HID USB, two (2) DB9 serial and one (1) emergency power off (EPO) port. Protection for phone/network (RJ11/RJ45) is included. EMI/RFI filters increase the immunity of the load to noise disturbances.
This UPS unit incorporates microprocessor-based fully digital control and includes PowerPanel Business Edition software for unsurpassed flexibility and control. The addition of an optional SNMP/Network card allows for remote management via web browser or network management system (NMS). A Three-Year Warranty ensures that this UPS has passed our highest quality standards in design, assembly, material or workmanship and further protection is offered by a $300,000 Connected Equipment Guarantee.
-
222.00 lbs
-
Management & Communications
Multifunction LCD Diagnostic Display: Load/Current Level, Runtime, Battery Level, Temperature (F & C), Battery In Use, Input Voltage, Output Voltage, Output Frequency, Overload, Wiring Fault, Battery Shutdown Voltage, Static Frequency Tolerance, Slew Rate, Silent Mode, Normal Mode
HID Compliant USB Port: Yes
Serial Ports: (2)
LED Indicators: Power on
Audible Alarms: On battery, low battery, overload
On-Device Management Features: Self Test, Auto-Charge, Auto-Restart
Software: PowerPanel Business Edition
SNMP/HTTP Remote Monitoring: Yes, with optional RMCARD202 or RMCARD203
AS400 Management: None
Emergency Power Off (EPO) Port: Yes -
# Ports: 5Communication Interface: Serial (RS-232)Communication Interface: USBConnector: Power NEMA L6-20 (F)Connector: Power NEMA L6-30Connector: Power NEMA L6-30 (F)Connector: Power NEMA L6-30 (M)
-
UPS, documentation
-
Attributes: Automatic voltage regulation (AVR)Attributes: Line interactiveAttributes: RJ-11 line protectionAttributes: RJ-45 line protectionColor: BlackForm Factor: 5U RackmountForm Factor: Rack-mountableWarranty Period: 3 yearsWeight Taxonomy: 222.66lbs
-
8.75"h x 17"w x 24.25"d
-
Plug Type: NEMA L6-30P
Plug Style: Straight
Cord Length: 10ft
Outlets - Total: (5)
Outlet Type: (3) NEMA L6-30R, (2) NEMA L6-20R
Outlets - Battery & Surge Protected: (30
Outlets - Critical Load: (2) -
Battery Run Time (max): 11minPower Capacity (VA): 5000VAPower Provided: 4500Power Provided: 4500WSurge Suppression: StandardSurge Suppression: YesVoltage Provided: 12VVoltage Provided: 240V
-
General
UPS Topology: Line-Interactive (AVR)
Energy Saving: GreenPower UPS Bypass Technology
Input
Voltage: 208Vac - 240Vac
Voltage Range: 148Vac - 254Vac
Adjustable Voltage Range: 131Vac - 268Vac
Frequency: 50Hz/60Hz +/- 3Hz
Cold Start: Yes
Output
Capacity: 5000VA/4500W
Automatic Voltage Regulation: Yes
On Battery Voltage: 208Vac +/- 5%
On Battery Frequency: 60Hz +/- .1Hz
On Battery Waveform: Pure sine wave
Overload Protection: On Utility Circuit Breaker; On Battery Internal Current Limiting
Transfer Time: 4ms
Battery
Runtime at Half Load: 31 minutes (2000W)
Runtime at Full Load: 11 minutes (4500W)
Battery Type: Sealed lead acid
Battery Size: 12V/9AH
User Replaceable: Yes
Hot Swappable: Yes
Typical Recharge Time: 8 Hours
Replacement Battery: BB Battery - HR9-12
Battery Quantity: (16)
External Battery Pack Option: BPL48V75ART2U
Surge Protection and Filtering
Surge Suppression: 2430 Joules
Phone/Ethernet: RJ-11/RJ-45 1-In, 1-Out (Combo)
EMI/RFI Filtration: Yes -
Remote Management Protocol: HTTPRemote Management Protocol: SNMP
-
This product is subject to our return policy. Please see our complete return policy for details.
-
200 lbs
-
Compliant Standards: CULCompliant Standards: FCC Class A certifiedCompliant Standards: ISO 9001Compliant Standards: RoHSCompliant Standards: ULCompliant Standards: UL 1778
-
OS Required: Microsoft Windows 2000OS Required: Microsoft Windows 2000/XP/Vista/7OS Required: Microsoft Windows 2003OS Required: Microsoft Windows 7OS Required: Microsoft Windows Server 2008 StandardOS Required: Microsoft Windows VistaOS Required: Microsoft Windows XP
-
39121011
-
3 Years
-
3 Years
-
Lifetime $300,000 Connected Equipment Guarantee
