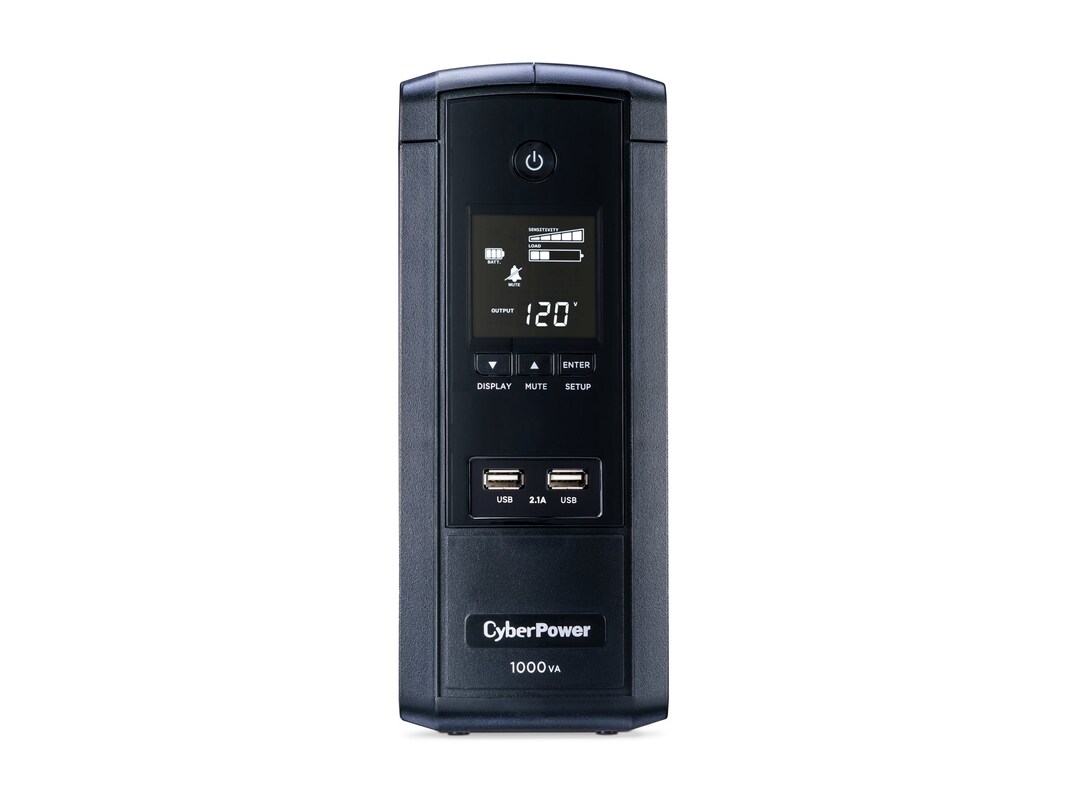

CyberPower 1000VA 120V AVR LCD UPS (10) 5-15R Outlets (BRG1000AVRLCD)

15.00 lbs

Features & Benefits

Automatic Voltage Regulation – AVR boost/buck technology stabilizes the AC voltage by increasing low voltages and decreasing high voltages to maintain a safe voltage level without switching to battery-mode. This conserves battery life and delivers cleaner AC power to connected equipment.
Multifunction LCD Panel – The innovative front white LCD panel displays UPS vitals: input voltage level, output voltage level, automatic voltage regulator, battery capacity, energy-saving bypass mode, runtime estimate, load level, output frequency, on battery, overload, fault condition, event logging and silent mode.
Reduce Energy Costs & Heat Loss – This ENERGY STAR qualified UPS system utilizes patented GreenPower UPS Bypass circuitry to save on energy costs by reducing energy consumption and heat buildup.
Ultra-Quiet Operation – One of the lowest sound emissions of any UPS in its class.
USB Charger – Two (2) 5Vdc USB charging ports with 2.1A support located on the front panel for convenient access to charge portable electronic devices such as tablets, mobile phones, MP3 players and cameras.
USB Connectivity – HID compliant USB port enables full integration with built-in power management and auto shutdown features of Windows, Linux and Mac OS.
Transformer-Spaced Outlets – Widely-spaced outlets accommodate large transformer-based plugs without compromising the utility of other outlets.
EMI/RFI Filters – Shielding against electromagnetic interference and radio frequency signals prevents line noise ("humming") over telephone lines or audio systems.
Audible Alarms – Distinctive tones identify when the unit is running on battery power, if it is overloaded or when the battery is low.
Resettable Circuit Breaker – The user may use this convenient unit reset switch in case of an overload.
PowerPanel Personal Edition – In event of a power outage, PowerPanel Personal Edition saves open files and "hibernates" the PC to increase the run-time on the UPS unit. PowerPanel is easily installed on any Windows-based PC and uses minimal system resources. Diagnostic screens display the status of the UPS, including silent operation mode, configurable system notifications, automatic self-tests, adjustable high/low voltage warnings, event/data logging and scheduled shutdowns.
5-Year Warranty – Stringent manufacturing processes and innovative product design enables CyberPower to offer one of the strongest warranties in our industry. CyberPower will replace damaged units within five (5) years of purchase date.
Technical Support – CyberPower will assist customers with any product, installation or warranty concerns, free of charge.
ISO & Safety Certifications – All CyberPower manufacturing facilities are state-of-the-art and ISO-9001 Quality Tested. Our products are certified by the FCC, cUL and UL.
Windows Compatibility – Our PowerPanel power management software has been fully tested and is compatible with Windows 8 32/64, Windows 7 32/64, Vista 32/64, XP 32/64, 2000, 2003, Server 2008 and Server 2012.


Certifications

Safety: UL1778, cUL 107, FCC DOC Class B
Environmental: RoHS Compliant

UPS, USB cable, documentation

9.7"h x 3.9"w x 10.2"d

Connectors

(10) NEMA 5-15R outlets (5 backup and surge protection, 5 surge only)
(1) NEMA 5-15P input cord, 6ft, right-angle

Management & Communications

Multifunction LCD Panel: Toggle Status Display includes Current/Load Level, Runtime, Battery Level, AVR In Use, Battery In Use, Input Voltage, Output Voltage, Output Frequency, Overload, Wiring Fault, Silent Mode
HID Compliant USB Port: Yes
Serial Port: Yes
Cable Management: USB Cable
LED Indicators: Power On, Wiring Fault
Audible Alarms: On Battery, Low Battery, Overload, Fault

Input

Voltage Nominal: 120V
Frequency: 60Hz +/- 3Hz
Input Voltage Range: 90Vac – 148Vac

Output

Capacity: 1,000VA/600W
Automatic Voltage Regulation: Boost 1 +10% / Buck -10%
On Battery Voltage: 120Vac +/- 5%
On Battery Frequency: 60Hz +/- 1%
On Battery Waveform: Simulated Sine Wave
USB Charging Current: 2.1A
Rated Power Factor: 0.6
Overload Protection: Internal circuitry limiting / circuit breaker
Transfer Time: 4ms

Battery

Runtime at Half Load: 9 minutes (300W)
Runtime at Full Load: 1 minutes (600W)
Battery Type: Sealed Lead-Acid
Battery Size: 12V/9Ah
Hot-Swappable: No
Replacement Battery: RB1290
Battery Quantity: (1)
User Replaceable: Yes
Typical Recharge Time: 8 Hours

Surge Protection & Filtering

Surge Suppression: 1,080 Joules
Phone RJ-11/Ethernet RJ-45: 1-In, 1-Out (Combo)
Coax Protection RG-6: 1-In, 1-Out
EMI/RFI Filtration: Yes
