In Stock
- Ships in 48 Hours
This product requires DNA licensing to be attached.

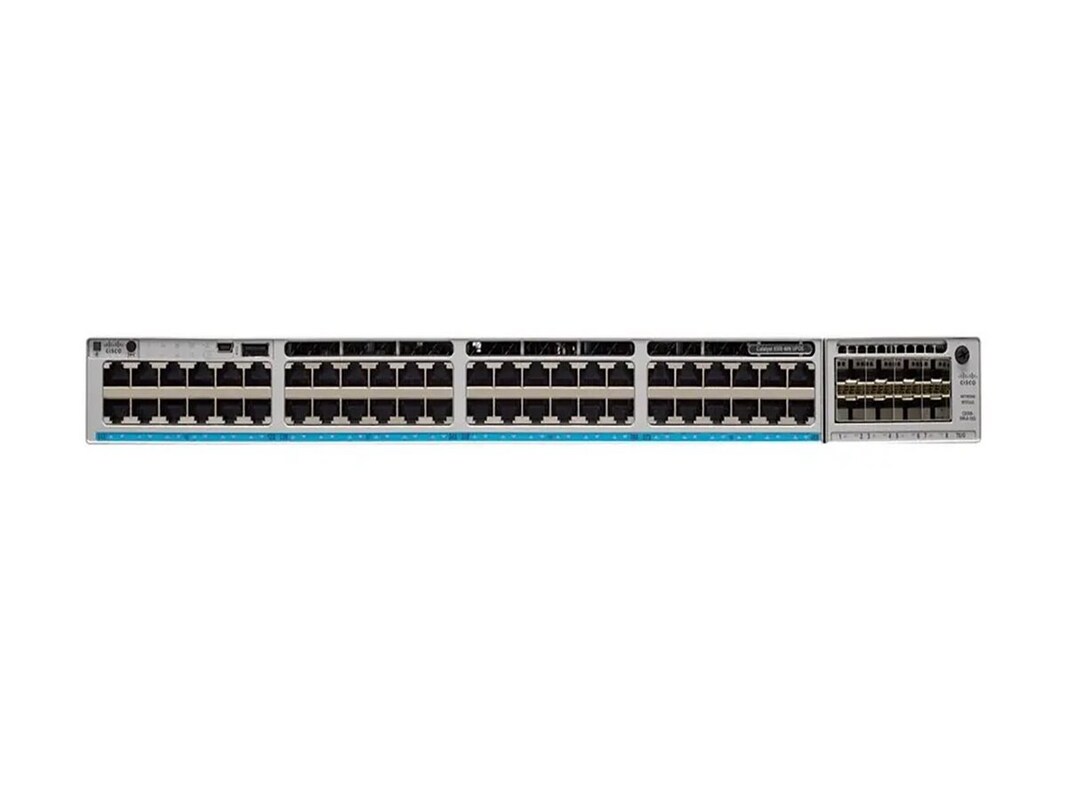

The Catalyst 9300 series is an advanced stackable switching platform. These network switches are built for security, IoT, and the cloud.
-
20.60 lbs
-
# Ports: 12# Ports: 36
-
Switch, power supply, documentation
-
Chassis Form Factor: 1U RackmountColor: GrayForm Factor: Rack-mountableWarranty Period: Limited lifetimeWeight Taxonomy: 20.59lbs
-
Specifications:
Switching capacity: 580Gbps
Stacking bandwidth: 480Gbps
Forwarding rate: 431.54Mpps
IPv4 routing table entries: 32000
IPv6 routing table entries: 16000
Flexible NetFlow entries: 64000
VLAN IDs: 4000
Switched virtual interfaces (SVIs): 2000
MAC Address Table Size: 32000 entries
Jumbo Frame Support: 9198 bytes -
RAM (installed): 16GBRAM (installed): 8GBRAM Technology: FlashRAM Technology: RAM
-
8GB RAM
16GB Flash memory -
Networking Type: Switch
-
1.7"h x 17.5"w x 18.5"d
-
Expansion slots:
(1) Expansion slot
I/O:
(36) 2.5GbE LAN RJ-45 UPoE
(12) 1/2.5/5/10GBase-T UPoE
(1) USB 2.0
(2) Power in -
# Power Supplies Installed: 1# Power Supplies Supported: 2Power Provided: 1100Power Provided: 1100W
-
(1) 1100 internal hot-plug power supply; support for 2 maximum.
Voltage required: 120 to 230V AC, 50 to 60Hz -
Networking Protocol: 10 Gigabit EthernetNetworking Protocol: 2.5 Gigabit EthernetNetworking Protocol: ACLNetworking Protocol: Gigabit EthernetNetworking Protocol: IEEE 802.1DNetworking Protocol: IEEE 802.1pNetworking Protocol: IEEE 802.1QNetworking Protocol: IEEE 802.1sNetworking Protocol: IEEE 802.1WNetworking Protocol: IEEE 802.1xNetworking Protocol: IEEE 802.3Networking Protocol: IEEE 802.3abNetworking Protocol: IEEE 802.3ad (LACP)Networking Protocol: IEEE 802.3afNetworking Protocol: IEEE 802.3atNetworking Protocol: IEEE 802.3uNetworking Protocol: IEEE 802.3xNetworking Protocol: IGMPNetworking Protocol: OSPFNetworking Protocol: QOSNetworking Protocol: RIPNetworking Protocol: UPoERemote Management Protocol: CLIRemote Management Protocol: NETCONFRemote Management Protocol: RESTCONFRemote Management Protocol: RMON 1Remote Management Protocol: RMON 2Remote Management Protocol: SNMP 1Remote Management Protocol: SNMP 2cRemote Management Protocol: SNMP 3Routing Protocol: BGPRouting Protocol: EIGRPRouting Protocol: HSRPRouting Protocol: IGMPRouting Protocol: IS-ISRouting Protocol: MSDPRouting Protocol: OSPFRouting Protocol: OSPFv3Routing Protocol: PIM-SMRouting Protocol: PIM-SSMRouting Protocol: Policy-based routing (PBR)Routing Protocol: RIP-1Routing Protocol: RIP-2Routing Protocol: RIPngRouting Protocol: VRRP
-
Due to manufacturer restrictions, all sales on this item are final.
-
35 lbs
-
Compliant Standards: AS/NZS 3548 Class ACompliant Standards: BSMI Class ACompliant Standards: CAN/CSA-C22.2 No. 60950-1Compliant Standards: CCCCompliant Standards: CISPR 22 Class ACompliant Standards: CISPR 24Compliant Standards: EN 300 386Compliant Standards: EN 55022 Class ACompliant Standards: EN 60950-1Compliant Standards: EN 61000-3-2Compliant Standards: EN 61000-3-3Compliant Standards: EN 61000-4-2Compliant Standards: EN 61000-4-3Compliant Standards: EN 61000-4-4Compliant Standards: EN 61000-4-5Compliant Standards: EN 61000-4-6Compliant Standards: EN 61000-6-1Compliant Standards: EN50082-1Compliant Standards: EN55024Compliant Standards: FCC CFR47 Part 15 ACompliant Standards: ICES-003 Class ACompliant Standards: IEC 60950-1Compliant Standards: RoHS 5/6Compliant Standards: TVCN 7317Compliant Standards: UL 60950-1Compliant Standards: VCCI Class ACompliant Standards: VCCI V-3/2009 Class A
-
43222612
-
Limited Lifetime
-
Limited Lifetime
-
Limited lifetime warranty includes next business day response time and 90-day consulting and technical support.
