In Stock
- Ships in 1-2 Business Days
This product requires DNA licensing to be attached.

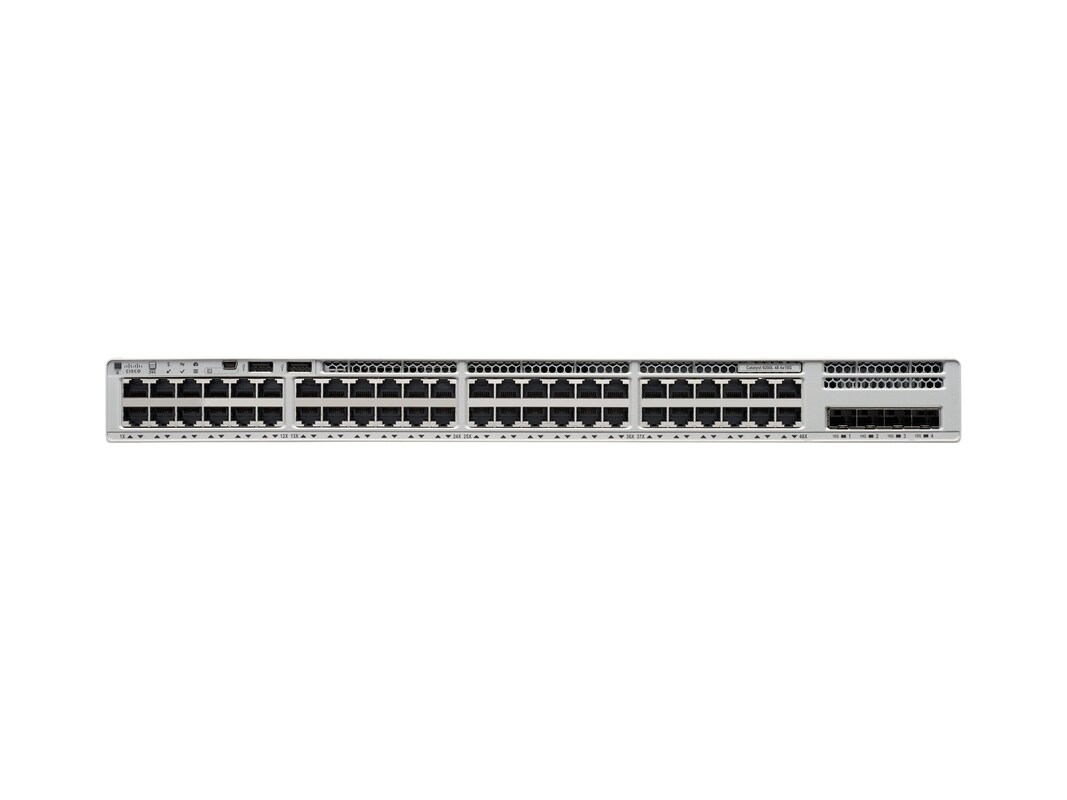

The Cisco Catalyst 9200 Series switch can help customers simplify complexity, optimize IT, and reduce operational costs by leveraging intelligence, automation and human expertise. This switch provides security features that protect the integrity of the hardware as well as the software and all data that flows through the switch. It provides resiliency that keeps your business up and running seamlessly. The C9200L-48T-4X-E model has 48 ports 1G data with 4x 10G SFP+ fixed uplinks. Licensing is required.
-
9.60 lbs
-
# Ports: 4# Ports: 48
-
Switch, (2) power supplies, documentation
-
Chassis Form Factor: 1U RackmountColor: GrayForm Factor: Rack-mountableWarranty Period: Limited lifetimeWeight Taxonomy: 11.02lbs
-
Stacking bandwidth: 80 Gbps
Switching capacity: 176 Gbps
Forwarding rate: 261.9 Mpps
Virtual networks: 1
IPv4 routes: 11000
IPv4 routing table entries: 3000
IPv6 routing table entries: 1500
Multicast scale: 1000
ACL scale entries: 1500
FNF entries: 16000
VLANs supported: 1024
Switched virtual interfaces (SVIs): 512
QoS hardware queues per port: 8
MAC Address Table Size: 16000 entries
Jumbo Frame Support: 9198 bytes -
RAM (installed): 2GB
-
DRAM: 2 GB
Flash: 4 GB -
Networking Type: Switch
-
1.7"h x 17.5"w x 11.3"d
-
I/O:
(48) 1000Base-T RJ-45
(4) 10GBase-X SFP uplink
(1) network stack device
(1) management (LAN) RJ-45
(1) console RJ-45
(2) Power in -
# Power Supplies Installed: 2# Power Supplies Supported: 2
-
(2) Hot-plug power supplies; maximum./
Voltage required: 120 to 230V AC, 50 to 60Hz -
Networking Protocol: 10 Gigabit EthernetNetworking Protocol: Gigabit EthernetNetworking Protocol: IEEE 802.1DNetworking Protocol: IEEE 802.1pNetworking Protocol: IEEE 802.1QNetworking Protocol: IEEE 802.1sNetworking Protocol: IEEE 802.1WNetworking Protocol: IEEE 802.1xNetworking Protocol: IEEE 802.3Networking Protocol: IEEE 802.3abNetworking Protocol: IEEE 802.3ad (LACP)Networking Protocol: IEEE 802.3bzNetworking Protocol: IEEE 802.3uNetworking Protocol: IEEE 802.3xNetworking Protocol: IEEE 802.3zRemote Management Protocol: CLIRemote Management Protocol: NETCONFRemote Management Protocol: RESTCONFRemote Management Protocol: RMON 1Remote Management Protocol: RMON 2Remote Management Protocol: SNMP 1Remote Management Protocol: SNMP 2cRemote Management Protocol: SNMP 3Routing Protocol: EIGRPRouting Protocol: EIGRP for IPv6Routing Protocol: MSTPRouting Protocol: OSPFRouting Protocol: PIM-SMRouting Protocol: PIM-SSMRouting Protocol: Policy-based routing (PBR)Routing Protocol: RIP-1Routing Protocol: RIP-2Routing Protocol: RIPngRouting Protocol: VRRP
-
Due to manufacturer restrictions, all sales on this item are final.
-
16.8 lbs
-
Compliant Standards: AS/NZS 3548 Class ACompliant Standards: AS/NZS 60950-1Compliant Standards: BSMI Class ACompliant Standards: CAN/CSA-C22.2 No. 60950-1Compliant Standards: CCCCompliant Standards: CISPR 22 Class ACompliant Standards: CISPR 24Compliant Standards: CISPR 32 Class ACompliant Standards: CISPR 35Compliant Standards: CNS 13438Compliant Standards: EN 300 386Compliant Standards: EN 55022 Class ACompliant Standards: EN 55032 Class ACompliant Standards: EN 60950-1Compliant Standards: EN 61000-3-2Compliant Standards: EN 61000-3-3Compliant Standards: EN 61000-6-1Compliant Standards: EN55024Compliant Standards: FCC CFR47 Part 15 B Class ACompliant Standards: ICES-003 Class ACompliant Standards: IEC 60950-1Compliant Standards: KN32Compliant Standards: KN35Compliant Standards: RoHS 5/6Compliant Standards: TCVN 7189 Class ACompliant Standards: TCVN 7317Compliant Standards: UL 60950-1Compliant Standards: V-3 Class ACompliant Standards: VCCI Class A
-
Hard Drive Capacity: 4GBHard Drive Type: Flash
-
43222612
-
Limited Lifetime
-
Limited Lifetime
