Temporarily Out-of-Stock
- Call for next available delivery
High performance redundant power protection with scalable power and run time for IT and telecommunications equipment.
Ordering Information
$24,829.28
Add to Cart
Messages
Loading
-
:
Quick View
Getting Details

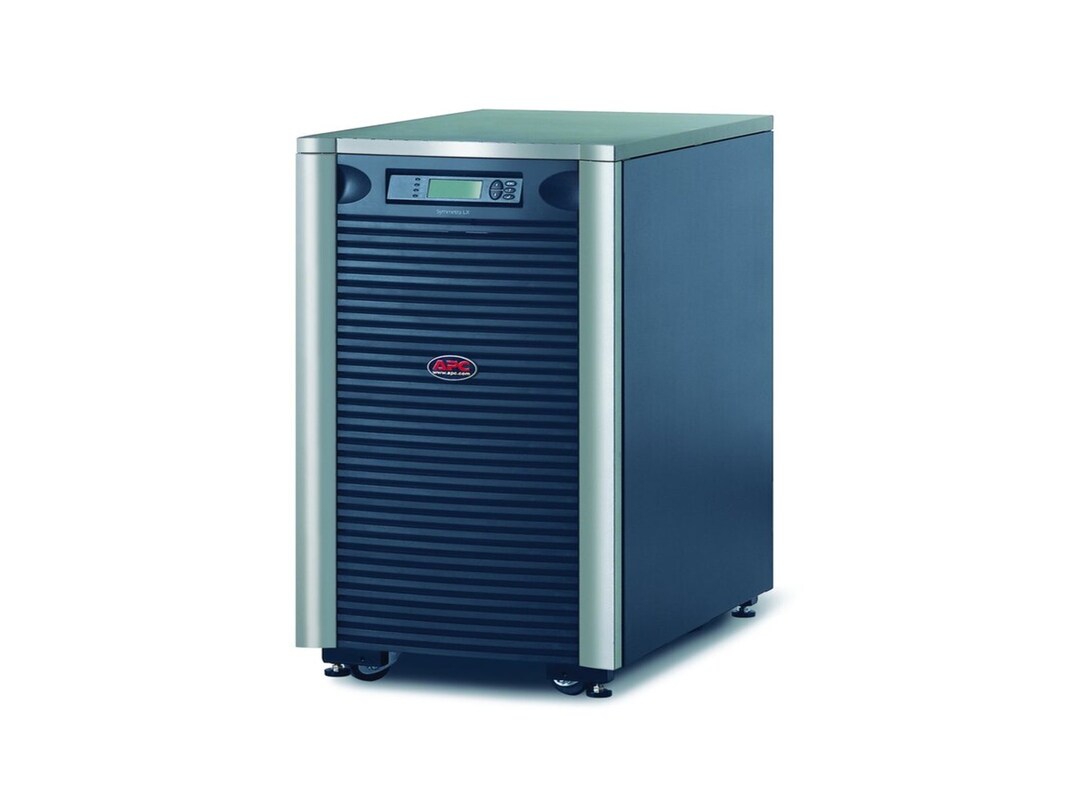

Engineered to deliver the highest level of business continuity possible, the Symmetra LX uses a modular, redundant architecture that can scale power and run-time as demand increases or when higher levels of availability are required. Advancements in this next generation design greatly decrease foot print or U-space needed in an equipment rack, increase speed and ease of deployment and reduce repair time. With built-in network manageability and a comprehensive portfolio available from 4-16 kVA N+1, the on-line Symmetra LX is the choice to protect high-performance IT and telecom equipment in computer rooms and small data centers.
-
677.00 lbs
-
# Ports: 1Communication Interface: Serial (RS-232)Connector: HardwireConnector: Hardwire 4-wire (2PH+N+G)Connector: Power Hard Wire 4-wire (2PH + N + G)
-
UPS, CD with software, Web/SNMP management card and documentation
-
Attributes: Double conversion onlineColor: BlackColor: SilverForm Factor: ExternalForm Factor: TowerWarranty Period: 2 yearsWeight Taxonomy: 679.02lbs
-
36.9"h x 19"w x 28.6"d
-
(1) DB-9 RS-232 interface port
(2) Smart-Slot (1 available)
(1) Hardwire 4-wire (2PH+N+G) output connector
(1) Hardwire 4-wire (2PH+N+G) input connector -
Battery Run Time (max): 6minPower Capacity (VA): 16000VAPower Provided: 12800WSurge Suppression: StandardVoltage Provided: AC 120/208/240V
-
Output power capacity: 12,800W/16,000VA
Maximum configurable power: 12,800W/16,000VA
Nominal output voltage: 120, 208VAC
Output frequency (sync to mains): 47-63Hz
Configurable for 120/208 or 120/240 output voltage
Output Voltage Distortion: less than 5% at full load
Crest Factor: up to 5 : 1
Waveform type: Sinewave
Bypass: Internal Bypass (Automatic and Manual)
Nominal input voltage: 208VAC
Input frequency: 45 - 65Hz (auto sensing)
Input voltage range for main operations: 155-276VAC
Other Input Voltages: 240VAC
Battery type: maintenance-free sealed Lead-Acid battery with suspended electrolyte
Included battery modules: (4)
Typical recharge time: 3 hours
Replacement Battery: SYBT5
Typical backup time at half load: 17.1 minutes (6400 Watts)
Typical backup time at full load: 6.0 minutes (12800 Watts) -
Remote Management Protocol: HTTPRemote Management Protocol: SNMP
-
This product is subject to our return policy. Please see our complete return policy for details.
-
725 lbs
-
Compliant Standards: CSACompliant Standards: FCC Class A certifiedCompliant Standards: UL 1778
-
