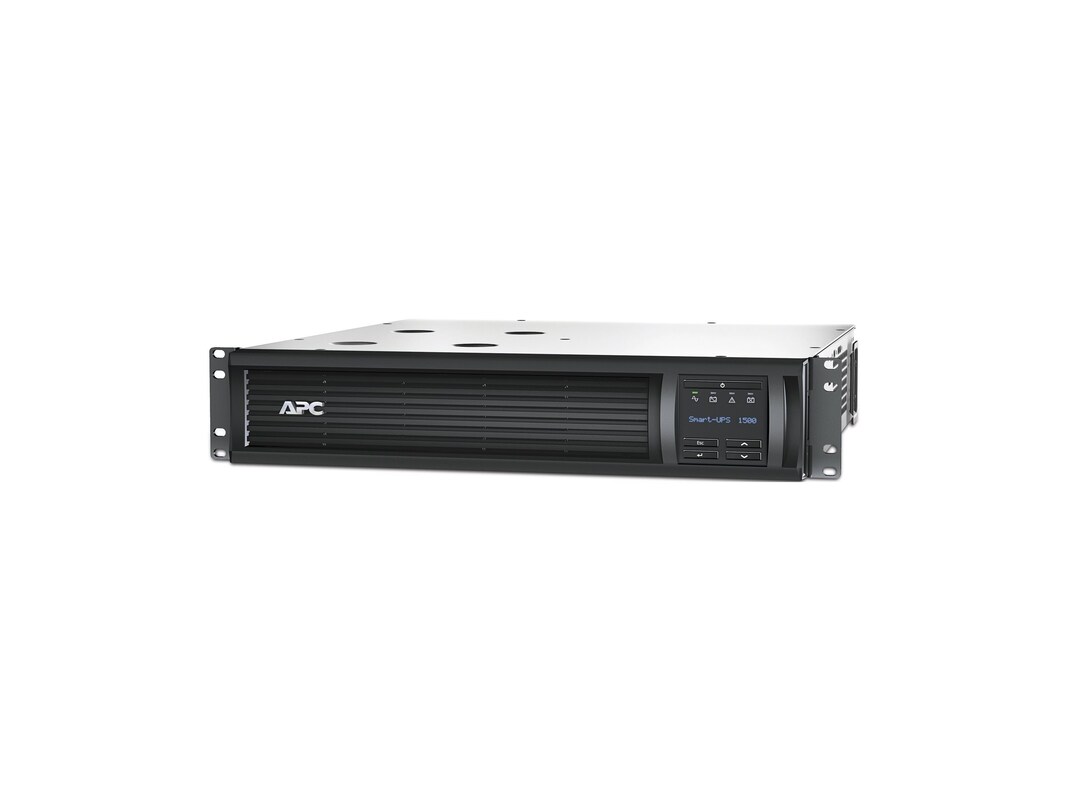

APC Smart-UPS 1500VA LCD RM 2U 230V w Network Card (SMT1500RMI2Unc)

63.00 lbs

Cold-start capable:?Provides temporary battery power when the utility power is out.?
Energy meter:?Provides actual kilowatt hours of usage for energy conscious users.?
Green mode:?Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.?
High online efficiency:?Reduces utility costs, generates less heat.?
Intuitive LCD interface:?Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.?
Predictive replace battery date:?Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.?
Preinstalled network management card:?Provides for remote management and control of the UPS over a network out of the box.?
Pure sine wave output on battery:?Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.?
Sequenced network shutdown and reboot:?Customize network shutdown and reboot sequence of connected servers and UPSs.?
Single switched outlet group:?Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.?
SmartSlot:?Customize UPS capabilities with management cards.?
StruxureWare Data Center Expert compatible:?Enables centralized management via StruxureWare Data Center Expert.?
Temperature-compensated battery charging:?Prolongs battery life by regulating the charge voltage according to battery temperature.

UPS, rack mounting support rails, Smart UPS signaling RS-232 cable, temperature probe, USB cable, installation guide, CD with software, documentation CD

3.5"H x 17"W x 18"D

Interface Port(s): RJ-45 10/100 Base-T , RJ-45 Serial , SmartSlot , USB
Pre-Installed SmartSlot™ Cards: AP9631
Control panel: LED status display with On Line : On Battery : Replace Battery and Overload indicators, Multi-function LCD status and control console
Audible Alarm: Alarm when on battery : distinctive low battery alarm : configurable delays
Emergency Power Off (EPO): Optional

Output power capacity: 1.0 KWatts / 1.5 kVA
Max Configurable Power (Watts): 1.0 KWatts / 1.5 kVA
Nominal Output Voltage: 230V
Output Voltage Note: Configurable for 220 : 230 or 240 nominal output voltage
Output Voltage Distortion: Less thatn 5%
Output Frequency (sync to mains): 50/60Hz +/- 3 Hz
Other Output Voltages: 220, 240
Topology: Line Interactive
Waveform type: Sine wave

Output Connections:?(4) IEC 320 C13 (Battery Backup)
(2) IEC Jumpers (Battery Backup)

Transfer Time: 2ms typical

Nominal Input Voltage: 230V
Input frequency: 50/60 Hz +/- 3 Hz (auto sensing)
Input Connections: IEC-320 C14
Input voltage range for main operations: 160 - 286V
Input voltage adjustable range for mains operation: 151 - 302V
Other Input Voltages: 220, 240

Battery type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time: 3hour(s)
Replacement Battery: SMT1500RM2UNC
Expected Battery Life (years): 3 - 5
RBC Quantity: 1

Surge energy rating: 459Joules

Rack Height: 2U
Operating Temperature: 32 - 104 F ( 0 - 40 C )
Operating Relative Humidity: 0 - 95 %
Operating Elevation: 0-10000ft ( 0-3000meters )
Storage Temperature: -15 - 45 C
Storage Relative Humidity: 0 - 95 %
Storage Elevation: 0-50000ft ( 0-15000meters )
Audible noise at 1 meter from surface of unit: 46.0dBA
Online thermal dissipation: 90.0BTU/hr

This product is subject to our return policy. Please see our complete return policy for details.

70.2 lbs

39121011

3 Years

3 Years

3 years repair or replace (excluding battery) and 2 years for battery
