In Stock
- Ships in 1-2 Business Days
Add to Cart
Messages
Loading
-
:
Quick View
Getting Details

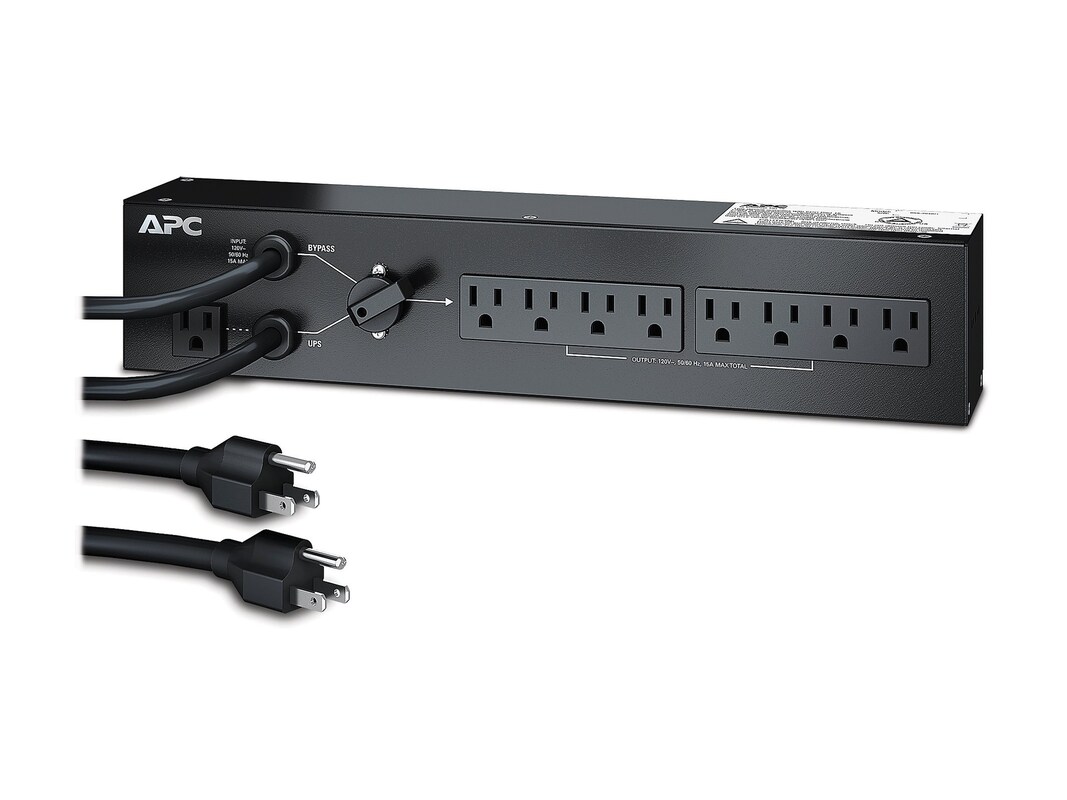

The APC service bypass panel (SBP), provides utility power to connected equipment during UPS maintenance. Its transfer rate is within the industry standard and within the time power supplies will typically drop loads. The transfer of one power source to another is seamless to the connected equipment avoiding disruption of equipment performance.
-
6.50 lbs
-
Conformance
Regulatory Approvals: TUV
Environmental Compliance: RoHS 7b Exemption, REACH - Contains No SVHCs -
# Ports: 8Connector: Power NEMA 5-15Connector: Power NEMA 5-15 (F)Connector: Power NEMA 5-15 (M)
-
Unit, rack mounting brackets, documentation
-
Color: BlackForm Factor: 2U RackmountForm Factor: Rack-mountableWarranty Period: 2 yearsWeight Taxonomy: 6.61lbs
-
3.5"h x 17"w x 3"d
-
Output Connections: (8) NEMA 5-15R
Always on Outlets: (8)
Input Connection: NEMA 5-15P
Cord Length: 8 feet (2.44 meters)
Number of Power Cords: (1) -
Power Capacity (VA): 1500VAVoltage Provided: 120VVoltage Provided: AC 120V
-
Output
Nominal Output Voltage: 120V
Maximum Total Current Draw per Phase: 15A
Overload Protection: Yes
Input
Nominal Input Voltage: 120V
Input Frequency: 50/60Hz
Acceptable Input Voltage: 100-125VAC
Maximum Line Current per phase: 15A
Maximum Input Current per phase: 15A
Load Capacity: 1500VA
Load Power Factor Range: 0 to 1 -
This product is subject to our return policy. Please see our complete return policy for details.
-
8.36 lbs
-
Compliant Standards: REACHCompliant Standards: RoHS Exemption 7bCompliant Standards: TUV
-
39121017
-
2 Years
-
2 Years
Description | Availability | Unit Price | ||
---|---|---|---|---|
